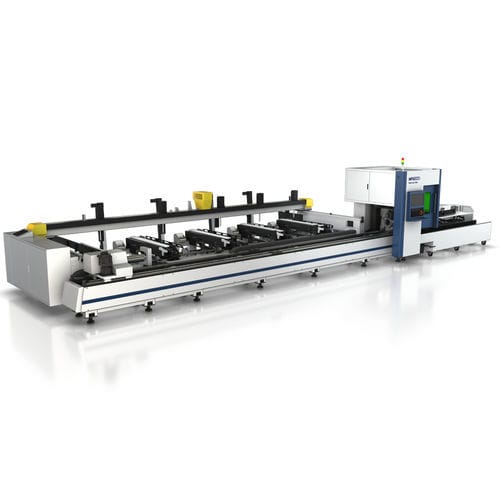

Fiber laser cutting machine MP-6012Dfor metaltubeCNC
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser
- Material
- for metal
- Product handled
- tube
- Control type
- CNC
- Applications
- for industrial applications
- Workpiece loading
- manual loading, with automated loading
- Configuration
- large-format
- Other characteristics
- semi-automatic, high-precision, high-speed, high-efficiency, with servo-motor
- X travel
3,000 mm, 6,200 mm
(118.11 in, 244.09 in)- Tube diameter
Max.: 120 mm
(5 in)Min.: 10 mm
(0 in)- Cutting speed
1 m/s
(3.281 ft/s)- Repeatability
0.03 mm
(0.0012 in)- Acceleration
11.77 m/s², 19.61 m/s²
(38.62 ft/s², 64.34 ft/s²)- Overall length
Max.: 12,000 mm
(472 in)Min.: 7,000 mm
(276 in)- Maximum width
Max.: 4,000 mm
(157 in)Min.: 3,000 mm
(118 in)- Weight
150 kg
(330.69 lb)- Load capacity
Max.: 2,000 kg
(4,409.2 lb)Min.: 500 kg
(1,102.3 lb)
Description
Product overview
Key features
Machine structure
Pneumatic fully-sealed chuck
Auxiliary support
Unloading mechanism
Loading configurations
MP6012D Semi Automatic Loading configuration
MP6012D Full Automatic Loading configuration
CNC numerical control system
Performance indexes (key items)
Why choose Hymson laser
Technical specifications
- Hymson MP6012D tube fiber laser cutting machine is an upgraded solution for high-efficiency laser processing and precision tube cutting in industrial production.
Key features
- High speed, high efficiency and high precision for small and medium tube cutting.
- Pneumatic fully-sealed integral chuck for improved stability, precision and dust protection.
- Standard nesting software and FSCUT professional tube cutting system for efficient programming and processing.
- Optional semi-automatic or full-automatic loading systems and optional short-tail handling to maximize material utilization and reduce labor.
Machine structure
- Plate-tube welded structure; main body welded and annealed to eliminate internal stress.
- Guide surface flatness and straightness ≤0.05 mm; maximum surface roughness 0.8.
Pneumatic fully-sealed chuck
- Full-stroke high-precision chuck with high clamping force, large clamping stroke, low rotational inertia and high rotational speed.
- Rear chuck with sealed dust-prevention structure to significantly improve protection and reliability.
Auxiliary support
- Variable-diameter support wheels prevent tube sway during high-speed rotation and ensure rotation precision during cutting.
- Provides guiding and supporting during feeding for stable material transfer.
Unloading mechanism
- Servo liftable plate turnover platform reduces sway during rotation and adapts automatically to different tube sizes to improve unloading efficiency.
Loading configurations
MP6012D Semi Automatic Loading configuration
- Circular tubes: φ15 mm ~ φ80 mm
- Square/rectangular tubes: □15 mm ~ □80 mm
- Loading tube length: 6200 mm
- Maximum loading weight: 500 kg
- Floor space (semi-auto): 7000 mm x 3000 mm
MP6012D Full Automatic Loading configuration
- Circular tubes: φ15 mm ~ φ80 mm
- Square/rectangular tubes: □15 mm ~ □80 mm
- Loading tube length: 3000–6200 mm
- Maximum loading weight: 2000 kg
- Floor space (full-auto): 8000 mm x 4000 mm
CNC numerical control system
- FSCUT control system developed on Windows 10, EtherCAT communication, integrates laser cutting modules with dedicated tube functions.
- Simple interface, touch display, wireless keyboard and mouse for intuitive operation.
Performance indexes (key items)
- Model: MP-6012D
- Automatic loading tube diameter (circular): φ15 mm–φ80 mm
- Manual loading tube diameter (circular): Φ10 mm–Φ120 mm
- Square/rectangular tube (auto/manual): □15 mm–□80 mm (auto), 10 mm–□80 mm (manual)
- Length of cutting residue: ≥200 mm / 60 mm
- Maximum single tube weight: 150 kg
- Floor space (example): 12000 mm x 3000 mm
- X/Y positioning speed: 60 m/min; acceleration: 1.2 g; positioning accuracy: 0.03 mm
- Z-axis positioning speed: 60 m/min; acceleration: 2 g; positioning accuracy: 0.03 mm
- B1/B2 axes: infinite rotation up to 150 rpm; angular acceleration 120 rad/s²
Why choose Hymson laser
- Intelligent dust exhaust system focusing on the cutting area to improve ventilation.
- Intelligent gas control system reducing gas consumption up to 50%.
- Auto-focusing for fast and accurate beam adjustment.
- Full-automatic lubrication system for low-maintenance operation.
- Factory-trained engineers provide installation, training and support.
Technical specifications
- Model: MP6012D (MP-6012D)
- Application: Tube fiber laser cutting for circular, square and rectangular tubes
- Automatic loading diameter (circular): φ15 mm–φ80 mm
- Manual loading diameter (circular): Φ10 mm–Φ120 mm
- Square/rectangular tube size: □15 mm–□80 mm (auto), 10 mm–□80 mm (manual)
- Loading length (semi-auto): 6200 mm
- Loading length (full-auto): 3000–6200 mm
- Max single tube weight (general spec): 150 kg
- Max loading weight (semi-auto): 500 kg; (full-auto): 2000 kg
- Floor space (general): 12000 mm x 3000 mm; (semi-auto): 7000 mm x 3000 mm; (full-auto): 8000 mm x 4000 mm
- X/Y axes positioning speed: 60 m/min; acceleration: 1.2 g; accuracy: 0.03 mm
- Z-axis positioning speed: 60 m/min; acceleration: 2 g; accuracy: 0.03 mm
- B-axis rotation speed: up to 150 rpm (infinite rotation); angular acceleration: 120 rad/s²
- Chuck: Pneumatic fully-sealed high-precision chuck
- Auxiliary support: Variable-diameter wheels
- Control system: FSCUT (Windows 10 based, EtherCAT)
- Standard software: Nesting software included
- Optional: Full/semi-automatic loading systems; short-tail material handling
