Fiber laser cutting machine MP6022D

for metaltubeCNC

Overview

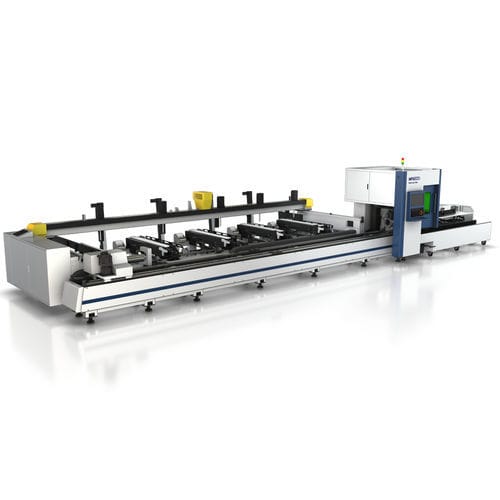

Hymson MP6022D series tube fiber laser cutting machine is a fully upgraded production solution designed for high‑efficiency, high‑precision cutting of small and medium tubes. The platform supports optional semi‑automatic and full‑automatic loading to match different production layouts.

Key Features

• High speed and high accuracy for small and medium tube cutting
• Pneumatic fully sealed integral chuck for stable clamping and improved dust protection
• Standard nesting software for optimized material use and production efficiency
• FSCUT professional tube cutting control integrates multiple tube cutting functions
• Optional semi‑automatic or full‑automatic loading to reduce labor
• Optional short‑tail handling to maximize tube utilization

Machine Structure
The machine adopts a plate‑tube welded structure. The main body undergoes annealing to eliminate internal stresses. Guide surface flatness and straightness ≤0.05 mm; maximum surface roughness 0.8.

Pneumatic Fully Sealed Chuck
Full‑stroke high‑precision chuck with high clamping force, large stroke, low rotational inertia and high rotation speed to meet most tube cutting requirements. The rear chuck features a fully sealed dust‑protection design.

Auxiliary Support
Variable‑diameter support wheels prevent tube sway during high‑speed rotation, ensure rotational accuracy during cutting and provide guiding and support during feeding.

Unloading Mechanism
The unloading mechanism uses a servo liftable plate turnover platform to reduce tube sway during rotation and to adapt automatically to different tube sizes, improving unloading efficiency.

MP6022D Semi‑Automatic Loading configuration

• Circular tubes: φ15 mm ~ φ120 mm
• Square & rectangular tubes: □15 mm ~ □120 mm
• Loading tube length: 6200 mm
• Maximum loading weight: 500 kg
• Floor space (example): 7000 mm x 3000 mm

MP6022D Full Automatic Loading configuration

• Circular tubes: φ15 mm ~ φ180 mm
• Square & rectangular tubes: □15 mm ~ □140 mm
• Loading tube length: 3000–6200 mm
• Maximum loading weight: 2000 kg
• Floor space (example): 8000 mm x 4000 mm

CNC Numerical Control System
FSCUT control system (Windows 10 base) with EtherCAT communication. The system integrates laser cutting modules, offers a simple touch interface and supports wireless keyboard and mouse for easy operation.

Why choose Hymson laser

• Intelligent localized dust exhaust to strengthen ventilation at the cutting area
• Intelligent gas control to reduce gas consumption by up to 50%
• Auto‑focusing for fast and accurate focus adjustment
• Fully automatic lubrication for gears and racks to reduce maintenance
• Installation, training and support by factory‑trained engineers

Technical specifications

• Equipment model: MP‑6022D / MP6022D
• Tube range (Full‑Automatic Loading): Circular Φ15 mm ~ Φ180 mm; Square & rectangular □15 mm ~ □140 mm
• Tube range (Manual Loading): Circular Φ10 mm ~ Φ220 mm; Square & rectangular □10 mm ~ □150 mm
• Saw residue length: ≥210 mm / 100 mm
• Maximum single tube weight: 300 kg
• Typical floor space: 12000 mm x 3000 mm (varies with configuration)
• X/Y axis positioning speed: 60 m/min; acceleration: 1.0 g; positioning accuracy: 0.03 mm
• Z axis positioning speed: 60 m/min; acceleration: 2 g; positioning accuracy: 0.03 mm
• B1/B2 axis infinite rotation speed: 100 rpm; B‑axis angular acceleration: 100 rad/s²
