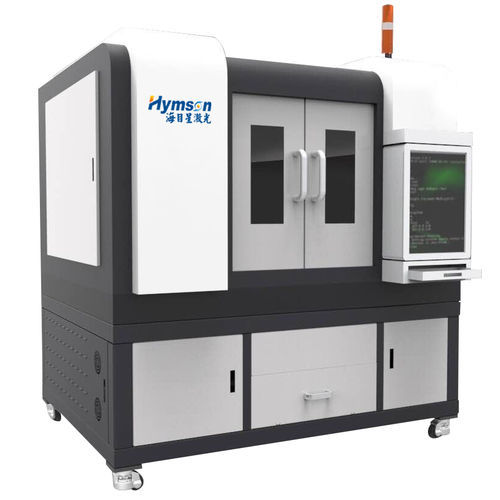

Fiber laser cutting machine HM6060

for aluminumfor stainless steelfor copper

Overview
The HM series fiber laser CNC sheet cutting machine HM6060 is designed for precision laser cutting of metal sheets, providing precision cutting, high-speed processing and a stable machine platform.

Key highlights

• Precision sheet laser cutting with a compact footprint
• High cutting throughput and low operating cost
• Suitable for copper/brass, aluminum, stainless steel and carbon steel

Features

• Compact footprint and reinforced mortise-and-tenon base for high rigidity
• Efficient CNC control (Master 6000) with large display and wireless input
• Advanced cutting modes: leapfrog cutting, automatic obstacle avoidance, lightning cut, rapid perforation, breakpoint resume, arbitrary cut-in
• Gradual speed regulation at tool start and optional burr-free aluminum alloy cutting; automatic switching between marking and cutting modes
• Auxiliary systems: localized intelligent dust extraction, intelligent gas control, auto-focus and full-automatic lubrication

Applicable materials
Stainless steel, carbon steel, aluminum, copper/brass and other thin metal plates.

Samples / Applications

• Production of high-precision metal components and sheet-metal parts
• Applications include precision components, industrial parts and sheet-metal assemblies

Control / Gas Management / Safety / Smoke Removal / Spare Parts
Control: wireless handheld controller for remote start/stop, focus adjustment, feed rate and contour follow.
Gas management: air-cooled screw compressor with receiver and dryer; optional low-temperature gasifier for high gas-consumption operations.
Safety: use certified protective glasses to protect against direct, reflected and scattered laser radiation.
Smoke removal: exhaust fan and filter ventilation to remove smoke and fine dust during cutting.
Spare parts: protective glasses, nozzles and common consumables.

Site preparation and installation requirements
Electrical supply: ≥60 kVA; three-phase voltage stability ±5%; unbalance <2.5%; grounding resistance <3 Ω.
Compressed air: ≥0.8 m3/min, pressure ≥7 bar, dew point ≤5℃, oil ≤0.01 ppm, particles ≤0.01 μm.
Auxiliary gases: O2 / N2 with purity ≥99.99%.
Installation environment: foundation per drawing, temperature 5–30℃, humidity <70%; ensure required separation/isolation and proper grounding.

Technical specifications

• Laser resonator: Fiber laser
• Power: 800–2000 W
• Model: HM6060
• Working range: 600 × 600 mm
• Max positioning speed (X, Y): 100 m/min
