Laser cutting machine HP30035

for carbon steelfor thick sheet metalfor metal sheets

Product overview

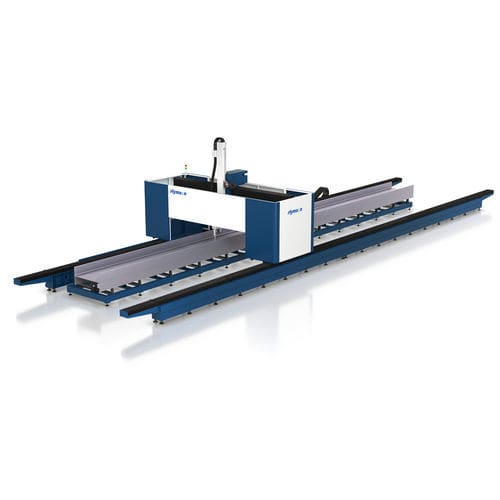

The Hymson HP30035 is a CNC laser cutting machine designed for special profiles used in steel structures (I-beam, HW, HM, HN). The unit integrates cutting, punching and grooving functions in a single production line.

Machine structure

• Split-structure bed welded from high-strength plates to ensure a stable frame and long-term reliable operation.
• High-temperature stress-relief treatment of the bed to remove internal welding and material stresses, maintaining strength, accuracy and tolerance.

Beam structure

• Beam manufactured from high-intensity steel to reduce stress deformation and secure stable operation.

Cutting section

• High-intensity, negative-face adjustable support structure suitable for cutting materials with widths from 200 to 3000 mm.
• Bottom support is easily adjustable and replaceable to reduce maintenance costs.
• Optional composite cutting table available for cutting flat plates and profiles.

Servo motor

• Equipped with branded servo motor and drive with a high-resolution encoder.
• High-dynamic performance, compact design and energy-efficient operation.

CNC system
The FSCUT laser cutting control system is developed on Windows 10 with EtherCAT bus communication and a modular integrated design; all system software runs on the PC processor.

• Advanced technology: PC-platform CNC application with modular functional modules allowing software-based expansion without hardware changes.
• Excellent performance: five-axis linkage and coordinate transformation for complex multi-axis multi-channel coordination; automatic correction for slightly twisted profiles.
• Complete functions: abundant function options and optimization configurations for application fields.
• Friendly interface: real-time CNC core ensures responsiveness while maintaining a simple, user-oriented interface.

Features / Technical specifications

• Model / Series: HP30035 series
• Laser power: 20000 W
• CNC system: FSCUT (Windows 10, EtherCAT)
• Processing types: H-steel, U-steel, angle steel and flat plate
• Functions: segment cutting, wing plate and web cutting, groove cutting and marking
• Linkage axes: Five axes (X/Y/Z/A/B)
• Nesting software for profile steel: compatible with Tekla, SolidWorks and CAD
• Profile sectional dimensions: Web H ≤ 1200 mm; Flange B ≤ 600 mm; Length L ≤ 12000 mm
• Cutting thickness (carbon steel, O2): Vertical cutting MAX 20 mm; Groove cutting MAX 30 mm
• Groove cutting range: 0–45°
• Processing speed (X,Y axes max positioning): 40 m/min
• Acceleration (X,Y axes max): 0.6 g
• Positioning accuracy (X,Y): 0.05 mm/10 m (≤10 m), 0.1 mm/whole length
• Machine dimensions (footprint): 35 m x 5 m x 4.5 m
