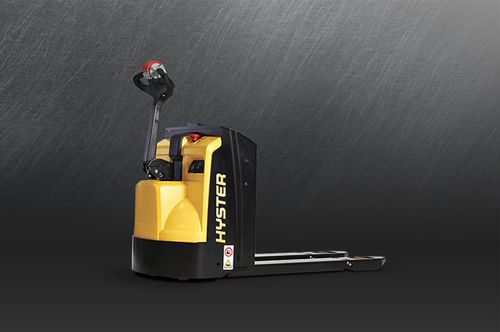

Electric pallet truck P1.6-2.2

lithium battery-poweredbattery-powered24 V

Overview
The P1.6-2.2 pedestrian pallet truck is an electric, accompanied pallet truck designed for continuous warehouse and logistics use. Available in 1,600–2,200 kg capacities with a 130 mm lift, it offers 24V lead-acid and 24V Li‑ion battery options and improved energy efficiency versus previous models.

Key features

• Heavy-duty drive frame in high-strength steel
• Vertically mounted, fully enclosed AC drive motor with easy access
• Exclusive Intelligent Lift™ option for lifting while traveling
• Adjustable performance settings and turtle (low-speed) mode
• Shortened mid-mounted tiller head for improved visibility

Heavy-duty drive frame
The drive frame is engineered from heavy-duty steel with an integrated drive unit casing that replaces fabricated components. This construction improves loaded stability by better engaging and supporting the pallet, concentrates forces into a single engineered component and increases service life.

Vertically mounted AC drive motor
The enclosed AC drive motor is mounted vertically within the drive frame and remains stationary while steering to protect power cables. An external speed sensor and diagnostic display are easily accessible to reduce service time and simplify routine maintenance.

Intelligent Lift™ option
When fitted with Intelligent Lift™, the truck can begin moving a pallet before full fork lift height is reached and will automatically lift to maximum fork height without continuous operator input. Lifting while traveling can reduce cycle times by up to 17%. The turtle function can be engaged in any run-zone position to slow speed and acceleration for precise manoeuvring, including inside trailers.

Adjustable performance and ergonomics
The mid-mounted shortened tiller head, large run zone and light hold-down effort reduce operator fatigue and accommodate a wide range of operators. The tiller positions the operator closer to the truck for improved visibility of load and fork tips. Large turnable bearings and standard rubber tyres reduce steering effort.

Models and specifications
Model | Load Capacity | Lift Height | AST (wide / long) | Battery Capacity | Weight
P1.6 | 1600 kg | 130 mm | 1718 / 1918 mm | 24V / 150–375 Ah; Li‑ion 24V / 50–100 Ah | 545 kg
P1.8 | 1800 kg | 130 mm | 1718 / 1918 mm | 24V / 150–375 Ah; Li‑ion 24V / 50–100 Ah | 545 kg
P2.0 | 2000 kg | 130 mm | 1718 / 1918 mm | 24V / 150–375 Ah; Li‑ion 24V / 50–100 Ah | 632 kg
P2.2 | 2200 kg | 130 mm | 1780 / 1980 mm | 24V / 150–375 Ah; Li‑ion 24V / 50–100 Ah | 632 kg

Applications
Warehouses, distribution centres and manufacturing sites requiring compact, manoeuvrable pallet handling in confined spaces.

Technical specifications

• Series: P1.6–P2.2
• Load capacities: 1600–2200 kg
• Lift height: 130 mm (all models)
• AST (Aisle/Straight Travel): 1718 / 1918 mm (P1.6–P2.0); 1780 / 1980 mm (P2.2)
• Battery options: 24V lead-acid 150–375 Ah; Li‑ion 24V 50–100 Ah
• Weight: 545 kg (P1.6/P1.8); 632 kg (P2.0/P2.2)
• Intelligent Lift™ option: lift while traveling, reduces cycle time up to 17%
• Vertically mounted enclosed AC drive motor for protected operation
