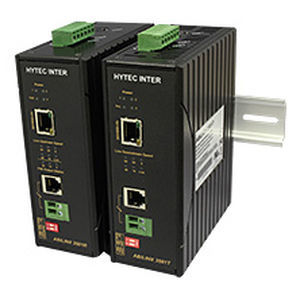

Ethernet extender ABiLINX 3501 series

PoE

ABiLINX 3501T / ABiLINX 3501R extends the PoE transmission distance over telephone line. At the same time as extending the transmission distance of PoE power, Ethernet data can also be transmitted over a telephone line of up to 1200 m. (When using 1P field wire (outdoor communication cable), a maximum PoE extension distance of 1500 m is achievable. (IP camera has a record of operation)) The ABiLINX 3501T transfers the power received from the power supply and the data received from the terminal to ABiLINX 3501R via telephone line. ABiLINX 3501R transfers PoE power and Ethernet data to the PoE terminal via LAN cable. Improved noise immunity by narrowing the frequency bandwidth used. Ideal for installing security / surveillance cameras in the following environments. – Places it is difficult to wire the power supply to the terminal. – Places with harsh temperature conditions. – Places where it is difficult to secure installation space. The perfect solution for these customers – When there is a need to use devices that can supply power to PoE-compatible devices such as IP cameras using telephone lines. – An environment where it is difficult to wire the power supply to the terminal. – An environment with severe temperature conditions. Measurement environment (1) ICT0.5mm real cable　(2) Line simulator (meridian 0.5mm） Device settings – ABiLINX 3501T side DIP switch PoL：Up（PoL enable）, Type：Up（Performance mode（speed priority）） – ABiLINX 3501R side DIP switch Mode：Up（Remote setting）, Type：Up（Performance mode（speed priority））
