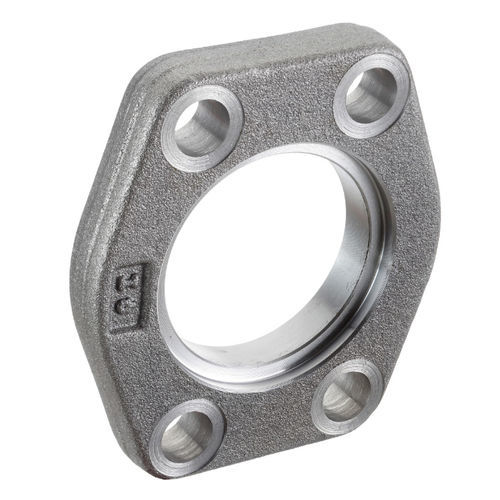

SAE flange FG 40for pipefor hosesfor chemicals
Add to favorites
Compare this product
Characteristics
- Applications
- for pipe, for hoses, for chemicals, for pipe welding, joining, for pumps
- Material
- steel
- Other characteristics
- threaded, SAE
- Nominal diameter
Max.: 125 mm
(4.92 in)Min.: 15 mm
(0.59 in)
Description
Our SAE flanges ate available as connection as well as threaded flanges. The connection dimensions correlate with the SAE norm 518c Standard - 3000 psi. The scope of delivery includes screws, lock rings and O-ring.
Technical data
Connection flange
Maximum operating pressure 40 bar
Threaded flange
Permissible operating pressure 210 bar and 420 bar
Classification/Order data
FG 40-(NG) - Process flange with O-ring sealing
FN 40-(NG) - Process flange without O-ring sealing
Catalogs
SAE Flanges
3 Pages
