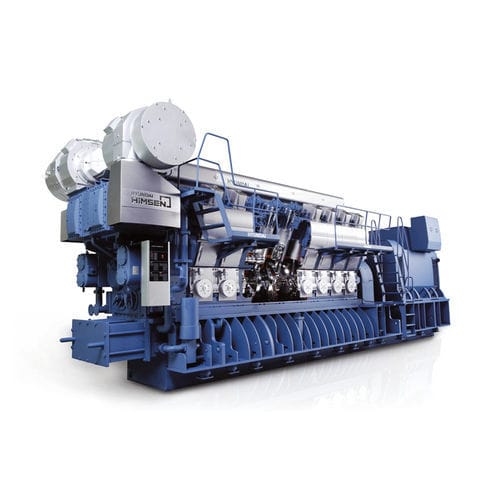

Diesel engine H32/40V seriesgasolinemulti-cylinderfor generator sets
Add to favorites
Compare this product
Characteristics
- Type
- diesel, gasoline
- Number of cylinders
- multi-cylinder
- Product applications
- for generator sets, power plant
- Other characteristics
- 4-stroke
- Power
Max.: 9,500 kW
(12,916.401 hp)Min.: 5,500 kW
(7,477.916 hp)- Rotational speed
720 rpm, 750 rpm
(4,523.89 rad.min-1, 4,712.39 rad.min-1)- Weight
Max.: 153.9 t
(169.65 us ton)Min.: 56 t
(61.73 us ton)- Length
10,384 mm, 11,155 mm, 11,393 mm, 12,444 mm, 13,003 mm
(408.8 in, 439.2 in, 448.5 in, 489.9 in, 511.9 in)- Width
2,300 mm
(90.6 in)- Height
4,723 mm, 4,794 mm
(185.9 in, 188.7 in)
Description
Steady Performance
One of the major important factors of an engine is its consistancy in performance. HiMSEN engine's professional engineering can assure stable power output even after many years.
Easy Maintenance
HYUNDAI engines are thoughtfully modularized for easy maintenance. Many O&M managers working on HYUNDAI’s power plant comment that the intuitive and stable engine design makes the site easier to be operated. Also, the pipeless design can prevent deformations.
Eco-friendly
HiMSEN engines have been designed with the environmental issues in mind. HYUNDAI always looks for various ways to protect the environment. Low NOx emissions / Smokeless at whole operation range / Low vibration & noise.
Bore
320 mm
Stroke
400 mm
