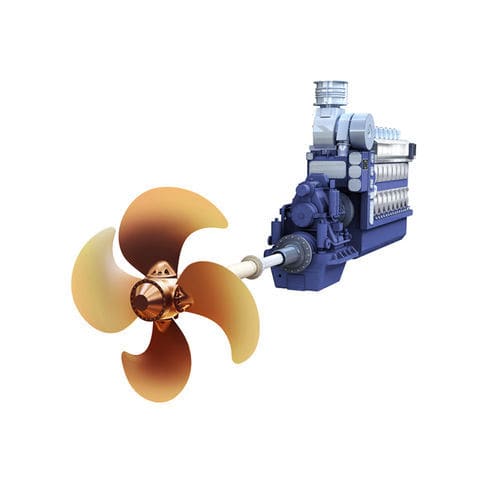

Diesel engine H32/40Pmulti-cylinderfor marine applicationsTier 3
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- multi-cylinder
- Product applications
- for marine applications
- Emissions level
- Tier 2, Tier 3
- Other characteristics
- low-noise
- Power
3,000 kW, 3,500 kW, 4,000 kW, 4,500 kW
(4,078.86 hp, 4,758.67 hp, 5,438.48 hp, 6,118.3 hp)- Weight
35.7 t, 39.6 t, 43.5 t, 46.6 t
(39.35 us ton, 43.65 us ton, 47.95 us ton, 51.37 us ton)- Length
5,021 mm, 5,511 mm, 6,079 mm, 6,569 mm
(197.7 in, 217 in, 239.3 in, 258.6 in)- Width
2,086 mm
(82.1 in)- Height
1,170 mm, 2,602 mm, 2,734 mm
(46.1 in, 102.4 in, 107.6 in)
Description
Bore
320 mm
Stroke
400 mm
Controllable Pitch Propeller
Permit high skew angles to minimize noise and vibration.
Fixed Pitch Propeller
Guarantee optimum thrust, minimal noise and vibration level.
Catalogs
Products Catalog
34 Pages
H32/40(V)
16 Pages
