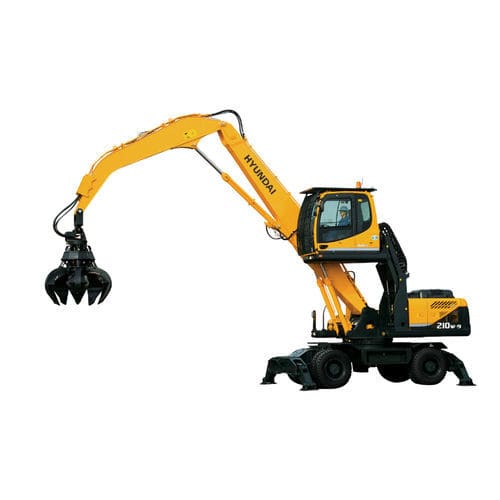

Rubber-tired material handler R210W-9 MH

hydraulic

Emission - TIER 3 Engine model - HYUNDAI HE 6.7 Rated Power - 122 kW / 1 900 rpm Max. Torque - 81.4 kgf·m / 1 400 rpm Hydraulic System Main Pumps Rated Flow - 2x228 ℓ/min Implement Circuit - 350 kgf/cm² Tank Capacity Fuel Tank - 310 ℓ Hydraulic Tank - 165 ℓ DEF/ ADBLUE Tank - - not applied Performance Swing Speed - 10.3 rpm Travel Speed - 35 km/h Max. Traction Force - 11 900 kgf Max. Gradeability - 31.5 deg Dimensions Overall Length - 9 600 mm Overall Width - 3 720 mm Overall Height - 2 530 mm Tail Swing Radius - 2 768 mm Tumbler Distance - 2 800 mm Ground Clearance - 345 mm Operating Range Boom Length - 6 500 mm Arm Length - 4 500 mm Max. Digging Depth - 4 710 mm Max. Digging Height - 12 650 mm Max. Dumping Height - 9 880 mm
