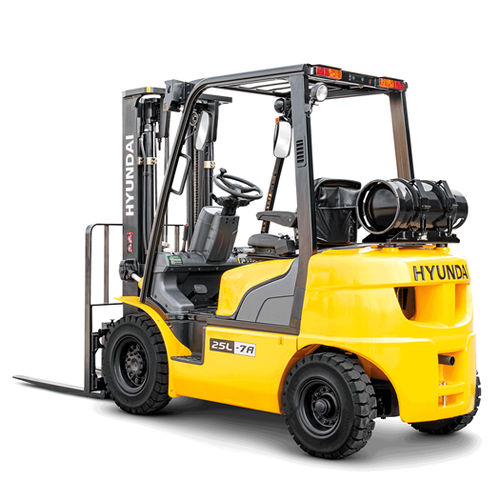

LPG forklift 7A

ride-onindoorfor warehouse

Overview
These LPG forklift trucks in the 7A series provide lift capacities from 2.5 to 3.3 tonnes with a compact frame and shortened wheelbase. Models 25L-7A, 30L-7A and 33L-7A are designed for high-productivity indoor material handling where clean fuel, manoeuvrability and reliable performance are required.

Highlights

• Load capacity: 2,500 / 3,000 / 3,300 kg (depending on variant)
• Load center distance: 500 mm
• Lifting heights available: 3,000 – 6,000 mm
• Turning radius: 2,298 / 2,398 mm (depending on configuration)
• Compact frame and shortened wheelbase for confined spaces

Engine
Engine model: HMC L4KB
Engine power: 44.7 kW

Rugged performance
The 7A-range (2.5–3.3 t) LPG forklifts are equipped with high-torque engines that deliver strong power at low engine speeds. This makes them suitable for repetitive cycles and loading/unloading on ramps. The trucks include service-oriented features and operator comfort elements to support long operating hours and lower operating costs.

Fast and stable performance
Fast mast raise/lower and tilt functions improve cycle times during loading and unloading. With a loaded truck, mast lowering speed is controlled by a down-control valve to ensure safe descent under load.

Technical specifications

• Series: 7A-Series
• Model variants: 25L-7A, 30L-7A, 33L-7A
• Rated load: 2,500 / 3,000 / 3,300 kg
• Load center: 500 mm
• Lifting heights: 3,000 – 6,000 mm
• Turning radius: 2,298 / 2,398 mm
• Engine model: HMC L4KB
• Engine power: 44.7 kW
• Fuel: LPG (liquefied petroleum gas)
• Frame: compact with shortened wheelbase for improved manoeuvrability
• Safety control: down-control valve for controlled mast lowering under load
