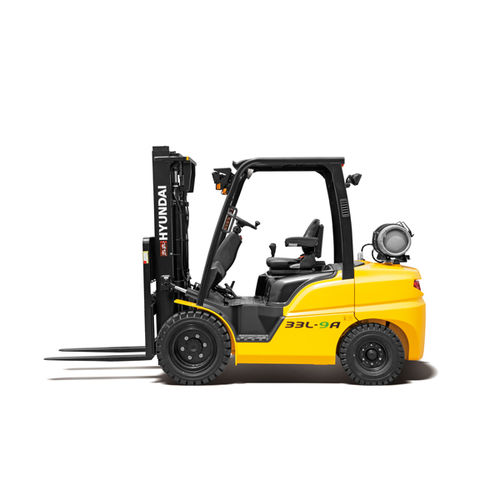

LPG forklift 9A

ride-onindoorfor warehouse

Overview
The 9A Series LPG forklifts provide 2.5–3.5 tonne lift capacity in a compact frame with a shortened wheelbase. Designed for high-productivity indoor material handling, the 25L-9A, 30L-9A and 33L-9A combine Stage V-compliant LPG power, agile manoeuvrability and consistent lifting performance.

Key highlights

• Load capacity: 2500 / 3000 / 3500 kg
• Load centre distance: 500 mm
• Lifting heights: 3000 - 6000 mm
• Turning radius: 2298 / 2398 / 2434 mm (model-dependent)
• Stage V-compliant LPG engines delivering high torque at low engine speed for ramp operations and repetitive cycles

Rugged performance
The 9A range is built to deliver straightforward, powerful performance across diverse indoor applications. Fuel-efficient LPG engines provide strong low-end torque and fast lift response, supporting loading/unloading on inclines and high-frequency tasks while improving operator comfort and uptime.

Technical details (engine)
Engine model: HMC L4KB
Engine power: 44.7 kW

Technical specifications

• Series: 9A-Series
• Applicable models: 25L-9A, 30L-9A, 33L-9A (2.5-3.5 t)
• Load capacity: 2500 / 3000 / 3500 kg
• Load centre distance: 500 mm
• Lifting heights: 3000 - 6000 mm
• Turning radius (R): 2298 / 2398 / 2434 mm (depending on model)
• Engine: HMC L4KB, 44.7 kW
• Fuel type: LPG (Stage V compliant)
• Design: compact frame and short wheelbase for indoor high-productivity operations
