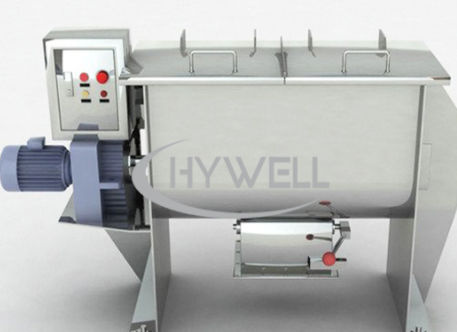

Paddle mixer DLH

ribbonhorizontalbatch

Principle This machine is composed of container, screw stirring paddles and transitional parts; the screw paddle are generally made into 1 layer or 3 layers, the outer screw converge is the material to the center from two sides, and the inner layer of screw conveys the material to the two sides from the center, so as to from convection mixing. Features 1. Big coefficient of loading, small occupied area. 2. It is difficult to clean when it is used to mix viscous or adhesive material. 3. The feeding system for the mixer is very flexible, it can be designed based on the customer site . 4. Control system has more choices ,such as push button ,HMI+PLC and so on 5. For the feeding system, it can choose vacuum feeding system or screw feeding system or other kinds of feeding system. 6. The whole machine features novel design, compact structure, and good appearance, the evenness of mixing reaches 99% , and the volume charge factor reaches 0.6 Applications DLH Horizontal Ribbon Mixer is general used in the mixing of viscous or adhesive powder material, or the mixing of powder which needs to add liquid, and paste material. Meanwhile, because it is difficult to clean viscous material, the machine is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently
