Foot-operated drum lifter WA30 series

hydraulicautomaticcylinder

Product Overview

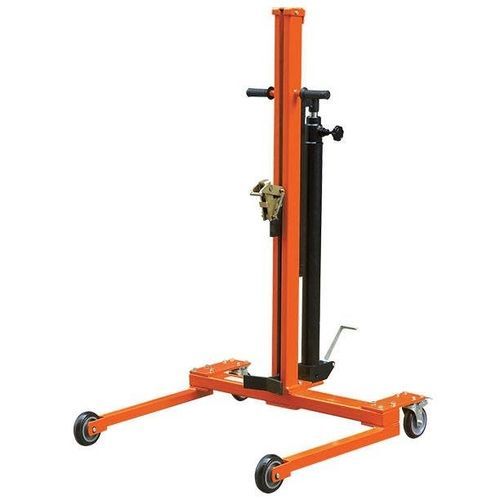

The WA30 Series (WA30A, WA30B) hydraulic drum trolley is an ergonomic lift designed to transport, lift and place rimmed poly, steel or fiber drums on or off pallets. The unit features a spring-loaded clamp for secure top-rim grip, high lift reach for loading ledges and vehicle beds, compact dimensions for transport and simple disassembly for storage.

Details of WA30 Hydraulic Drum Trolley

• Suitable for handling standard 55-gallon / 210 L rimmed drums (Ø572 mm / Ø22.5")
• Spring-loaded automatic clamp with steel jaw for reinforced rim grip
• Foot-operated hydraulic pump (no electrical power required)
• Braked rear swivel casters for safe positioning
• Two front wheel diameter options across models to suit different floor and loading conditions
• Fits into a vehicle for delivery or on-site transport

Features & Benefits

• Load capacity: 300 kg (660 lb)
• Adjustable lift height up to 805 mm (32") to reduce bending and improve ergonomics
• Powder-coated steel frame for corrosion resistance and long service life
• Spring clamp secures drums without deforming the rim
• Compact, lightweight design (68–72 kg) for easy manoeuvring and transport
• Braked casters prevent accidental movement during lifting and placement
• EN1757-1 certified to meet industrial safety requirements

Models / Technical Table

• WA30B — Capacity: 300 kg (660 lb); Drum size: Ø572 mm (Ø22.5"), 210 L (55 gallon); Overall dimensions: 866 × 956 × 1525 mm (34.1 × 37.6 × 60 in); Drum type: Poly, Steel, Fiber; Net weight: 68 kg (149.6 lb)
• WA30A — Capacity: 300 kg (660 lb); Drum size: Ø572 mm (Ø22.5"), 210 L (55 gallon); Overall dimensions: 952 × 956 × 1560 mm (37.5 × 37.6 × 61.4 in); Drum type: Poly, Steel, Fiber; Net weight: 72 kg (158.4 lb)

Technical specifications

• Series / Model: WA30 Series (WA30A, WA30B)
• Load capacity: 300 kg (660 lb)
• Drum compatibility: Poly, Steel, Fiber drums; rimmed drums; standard 55-gallon / 210 L; diameter Ø572 mm (Ø22.5")
• Overall dimensions (WA30B): 866 × 956 × 1525 mm (34.1 × 37.6 × 60 in)
• Overall dimensions (WA30A): 952 × 956 × 1560 mm (37.5 × 37.6 × 61.4 in)
• Adjustable lift height: up to 805 mm (32")
• Operation: foot-operated hydraulic pump (no electricity required)
• Clamping: automatic spring-loaded steel jaw for reinforced top rim grip
• Wheels / Mobility: braked rear swivel casters; two front wheel diameter options across models
• Net weight: WA30B = 68 kg (149.6 lb); WA30A = 72 kg (158.4 lb)
• Frame: powder-coated steel (corrosion-resistant)
• Certification: EN1757-1
• Design notes: compact design; easy disassembly for storage; suitable for transport in a vehicle
