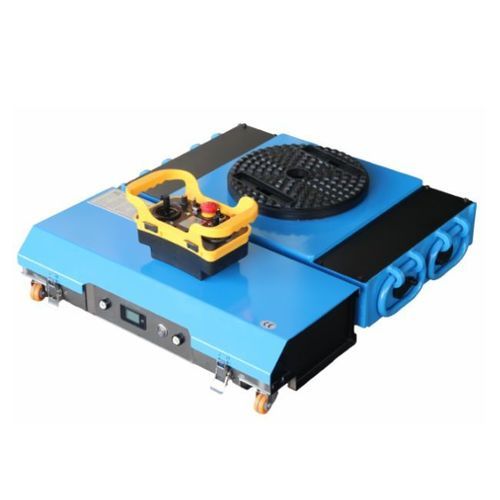

Manual moving skate ES series

self-propelledtransportbattery-powered

Overview
The ES-T electric machinery skates are compact, powered transport skates engineered for precise and stable movement of heavy machines and equipment in confined industrial spaces such as workshops, factories and warehouses.

Series description
The ES-T series features a single proportional joystick control for smooth steering and stable straight-line travel. A numerically controlled synchronous motor provides reliable traction, improving safety and efficiency when moving heavy loads. Available traction capacities range from 20 tonnes to 50 tonnes, making the ES-T suitable for installation, relocation, maintenance and industrial handling of large machinery.

General features

• Compact design with reduced external dimensions for operation in tight spaces.
• Proportional direct control via a single joystick for easy steering and stable straight movement.
• Numerically controlled synchronous drive motor for reliable traction.
• Four-wheel configuration optimized for heavy-load stability.

Specification table
Parameter | Unit | ES20T | ES25T | ES30T | ES40T | ES50T
i-lift no. | | 1914001 | 1914002 | 1914003 | 1914005 | 1914006
Model | | ES20T | ES25T | ES30T | ES40T | ES50T
Traction capacity | kg (lb) | 20000 (44000) | 25000 (55000) | 30000 (66000) | 40000 (88000) | 50000 (110000)
Loading capacity | kg (lb) | 10000 (22000) | 12500 (27500) | 15000 (33000) | 20000 (44000) | 25000 (55000)
Wheel rim size | mm (in) | 100 x 130 (3.9 x 5.1) | 100 x 130 (3.9 x 5.1) | 100 x 130 (3.9 x 5.1) | 120 x 155 (4.7 x 6.1) | 120 x 155 (4.7 x 6.1)
Number of wheels | pcs | 4 | 4 | 4 | 4 | 4
Loading area | mm (in) | 250 (9.8) | 250 (9.8) | 250 (9.8) | 250 (9.8) | 250 (9.8)
Overall dimensions (L x W x H) | mm (in) | 680x670x175 (26.8x26.4x6.9) | 680x670x175 (26.8x26.4x6.9) | 720x680x190 (28.3x26.8x7.5) | 800x740x210 (31.5x29.1x8.3) | 810x820x210 (31.9x32.3x8.3)
Battery (V / Ah) | | 48/60 | 48/60 | 48/60 | 48/120 | 48/120
Motor | kW | 0.75 | 1 | 1 | 2 | 2.5
Current | A | 60 | 60 | 60 | 60 | 60
Charge voltage | V | 54.6 | 54.6 | 54.6 | 54.6 | 54.6
Driving speed | m/min | 10 | 10 | 10 | 10 | 10
Duration | | 240-300 | 240-300 | 240-300 | 240-300 | 240-300
Net weight | kg (lb) | 130 (286) | 132 (290.4) | 148 (325.6) | 212 (466.4) | 222 (488.4)

Technical characteristics / specifications

• Series: ES-T.
• Available traction capacities: 20 000 kg (ES20T), 25 000 kg (ES25T), 30 000 kg (ES30T), 40 000 kg (ES40T), 50 000 kg (ES50T).
• Loading capacity: 10 000 kg to 25 000 kg depending on model.
• Number of wheels: 4 pcs.
• Wheel rim size: 100 x 130 mm (ES20T–ES30T); 120 x 155 mm (ES40T–ES50T).
• Loading area: 250 mm (9.8 in).
• Dimensions (L x W x H): from 680x670x175 mm to 810x820x210 mm depending on model.
• Battery supply (V / Ah): typically 48 V / 60 Ah; heavy-duty models 48 V / 120 Ah.
• Motor: numerically controlled synchronous motor, 0.75 kW to 2.5 kW depending on model.
• Rated current: 60 A.
• Recommended charge voltage: 54.6 V.
• Driving speed: 10 m/min.
• Operating duration / autonomy: 240–300 (units indicated on datasheet).
• Net weight: from 130 kg to 222 kg depending on model.
