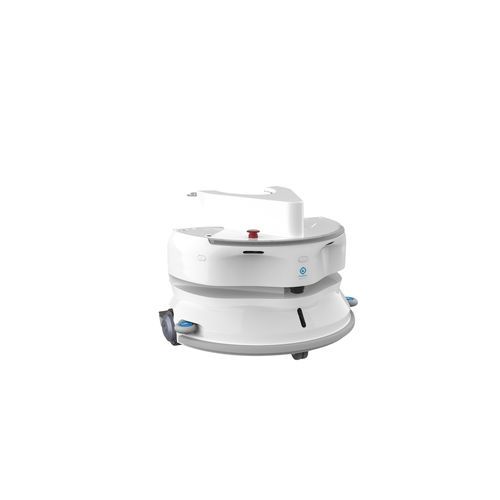

Floor cleaning robot i-walk

wet cleaningAI-powered autonomousmobile

Overview
The i-walk is a robotic add-on designed to automate the i-mop XL, converting the i-mop XL into a co-botic cleaning system. The i-walk does not operate on its own; when paired with an i-mop XL it enables automated cleaning of large areas with minimal setup (clean up to 300 m² with ~1 minute setup). For tight or hard-to-reach spaces the i-mop can still be used manually while the i-walk handles larger open areas.

Key benefits

• Put the i-walk to work in under 1 minute, saving setup time.
• Combines co-botization and the i-mop XL's cleaning performance to increase productivity.
• Dries floors quickly to reduce slip accidents.
• Uses significantly less water and chemicals (up to ~70–75% less than manual cleaning), supporting greener cleaning goals.
• Alleviates repetitive tasks to reduce physical strain and improve cleaner wellbeing.
• Cleans up to 6x faster and can deliver floors up to ~90% cleaner vs traditional mopping when combined with i-mop XL.

Features

• Auto Fill Mapping: Manually walk the i-walk around outer boundaries or use a QR code to define an area; the i-walk will automatically clean the space within the mapped area.
• Teach and Repeat mode: Record a cleaning path by walking the i-walk along the desired path and saving it to a QR code; repeatable automated cleaning for that area.
• Ultrasonic distance sensors: Enhanced nearby obstacle detection for safer navigation.
• TOF (Time-of-Flight) sensors: Detect both cliff/drop-off hazards and objects above the floor to prevent falls and improve navigation around obstacles.
• High-quality LiDAR (50 m range): Creates accurate environment maps for precise navigation.
• High-performance traction/fraction wheels: Provide grip and maneuverability across floor surfaces.
• Side guard bumper wheels: Help prevent damage to walls, furniture and the machine when navigating close to edges.
• Cleaning reports on-the-go: Real-time cleaning data available in the operator app to monitor cleaning coverage and performance.
• Connectivity: Wifi and optional 4G SIM card support for connectivity and reporting.

Product downloads

• Product Leaflet (leaflet available for download from product page).
• One page brochure (one-page brochure available for download from product page).

Technical specifications

• Theoretical performance: 1325 m²/h
• Practical performance: Up to 700 m²/h (depending on environment)
• Operational speed: Max 0.8 m/s
• Runtime: 4 hours (with 1 x i-power 9); 7 hours (with 1 x i-power 14); hand controller runtime: 16 hours (with 1 x i-power 5)
• Sensors: 2D LiDAR (x1); 3D TOF sensors (x3); Ultrasonic sensors (x3); Bumper strip (x1); Drive motor torque protection
• Sensor range: Up to 50 m @ 90% reflectivity; up to 15 m @ 15% reflectivity
• Obstacle detection: Minimum detectable height 2 cm
• Obstacle avoidance: Yes (auto fill method)
• Connectivity: Wifi; 4G SIM card support
• Dimensions: 725 x 565 x 516 mm
• Weight: 22 kg
