Mobile computer SE-92

5th generation Intel® Core™gigabit EthernetSIM card

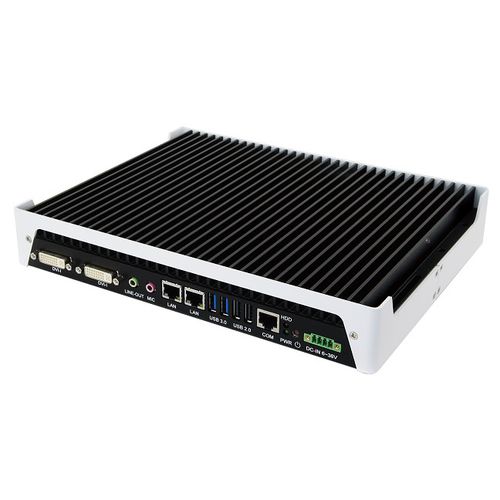

The 2015 iF DESIGN AWARD winning SE-92 digital signage player is a ruggedized fanless system based on the 5th Generation Intel® Core™ processor (codename Broadwell U). Featuring a wide-operating temperature range from -40°C to 75°C and 6V to 32V wide-range DC input, it is built specifically for harsh environments in outdoor and in-vehicle applications. Using 5th Generation Intel® Core™ processors on board, the SE-92 provides substantial computing power and drives two displays with smooth visual quality without the need for a discrete graphics card. The unit has an aluminum thermal frame that serves simultaneously as the entire system’s structural backbone, thermal conduit, airflow divider, EMI shield and mounting bracket for easy installation. The integrated dual DVI-I interface supports either a DVI-D or VGA display and has built-in EDID emulation function. Additionally, SE-92 has two dual-channel DDR3L-1600 sockets to provide up to 16GB of memory, dual Gigabit Ethernet, a SIM card slot and an optional 64GB mSATA SSD drive for fast system boot and low heat emissions. It also comes with Intel AMT for the remote control and IBASE’s iSMART green technology for power on/off scheduling and power resume functions.
