Tension load cell CF series

strain gauge

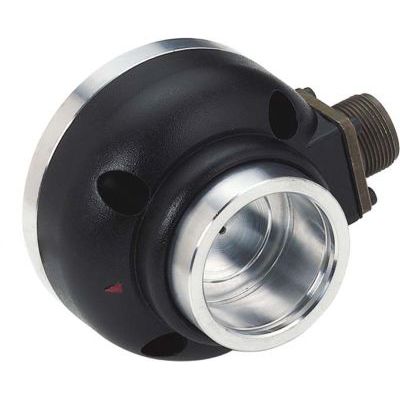

Two designs: flange and through-shaft Measuring ranges from 50 N up to 30,000 N Highest precision class of 0.5% Robust design with integrated overload protection Available in aluminum or steel (depending on the series) Ideal for unwinding, rewinding, and intermediate processes CF Flange Load Cells: The compact standard solution The CF flange load cell was specifically developed for measuring the resulting web tension force, taking into account wrap angles in unwinding, rewinding, or intermediate processes. It is mounted at the ends of the roller and ensures excellent web tension control, even under demanding industrial conditions. Thanks to their compact flange design, CF load cells can be easily installed even in tight spaces. Each unit features an integrated mechanical stop that provides protection against overload, thereby guaranteeing an extended service life and stable performance. Design: Compact flange design for easy installation Measuring range: Wide spectrum from 50 N to 25,000 N Protection: Integrated mechanical stop against overload Options: Special versions such as IP50 (dust-proof) and IP54 (splash-proof) available CK Through-Shaft Load Cells: Optimal for tight spaces CK through-shaft load cells are the ideal solution for industrial applications requiring precise tension detection and web tension control. Their through-hole design makes them perfect for installations with continuous shafts and in confined spaces. CK load cells feature a pre-assembled bearing for the roller pin, which simplifies alignment.
