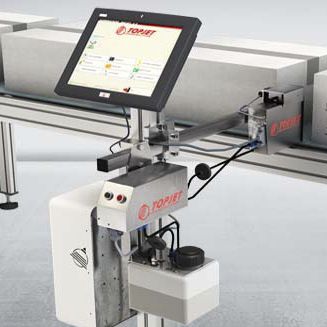

Inkjet printer HR series

industrial

HR UV series inkjet high resolution printing systems allow coding any type of moving packaging material or item through alpha-numeric texts, linear barcodes, 2D codes, logos and clip art Oil based inks allow application on porous surfaces such as non-glossy paper and non-glossy cardboard both white and coloured (avana). These systems use 510 dot print heads and a 180 dpi (dots per inch) resolution, thereby obtaining a printing area 71 mm maximum height for each head. Reliable and versatile thanks to the piezoelectric DOD (drop on demand) technology, they are the ideal solution to meet various printing requirements, as they can manage up to 64 print heads, which can be either freestanding or coupled together. This option allows extending the printing height up to 4×71=284 mm, and treating the printing layout as a single entity. As a matter of fact, the software divides the printing layout into stripes, which are transmitted to the print heads so as not to create defects on the contact lines between them.
