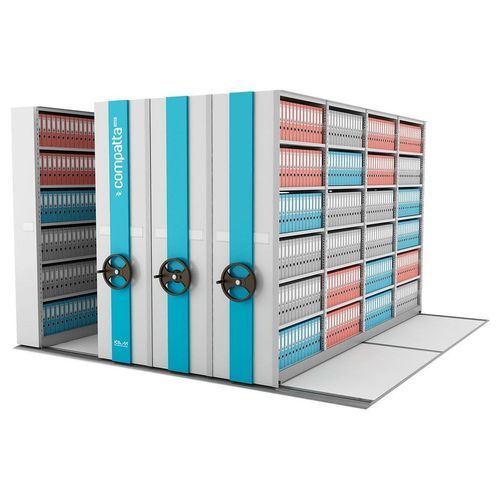

Vertical semi-automatic storage system Compatta Light

high-densitycompactshelf

Overview
Compatta Light is a semi-automatic mobile compact shelving system made of shelving units mounted on mobile bases that run on floor-integrated rails driven by a motorization mechanism. Moving the bases opens an access aisle to the stored material. The operator can open and close aisles manually by push-handle, handwheel or using the control panel located on the front of each mobile base.

Key advantages

• Space saving: saves over 50% of floor space compared with conventional shelving.
• Capacity increase: up to 90% more storage capacity on the same footprint.
• Protection: shields stored items from unauthorized access, light, dust and humidity.
• High accessibility and selectivity of stored items.
• Efficient capacity/cost ratio and low maintenance costs.

Functional features and accessories

• Movement options: manual push, handwheel operation, electro-mechanical with control panel.
• Mobile bases up to 12 m long.
• Integrated anti-tilt systems.
• Seismic design available.
• DUPLEX model available to create a second shelving level accessible by attached stairs.
• Front and rear panels available in various colors (standard grey and other finishes).
• Safety sensors: photoelectric barriers on entry fronts and inside aisles to stop movement if operators or obstacles are detected.
• Interior customization for different materials (books, lever-arch files, suspension folders, maps, paintings, electronic media, etc.).

Main applications

• Document archiving for public institutions
• Banking document storage
• Library storage and conservation
• Storage of historical collections and artworks in museums and galleries
• Automated archive furniture for document management

Optional equipment

• Sliding doors
• Locking systems
• Upper anti-tilt system

How it works (operational summary)

• 1. Open the desired aisle by manual push or mechanical handwheel movement.
• 2. Retrieve or deposit the material.
• 3. Close the selected aisle using the same movement method (manual or mechanical).

Technical specifications

• Commercial name: Compatta Light
• Type: compactable shelving system on mobile bases (semi-automatic)
• Movement: manual (push), handwheel, electro-mechanical with control panel
• Mobile bases: lengths up to 12 m
• Duplex model: option for a second level to utilize height
• Safety: photoelectric barriers on fronts and inside aisles, anti-tilt systems
• Design: seismic-version available
• Finishes: customizable front/rear panels (color)
• Capacity and space: >50% floor space saving; up to 90% increase in storage capacity on same footprint
• Accessories: internal fittings for files, suspension folders, books, maps, paintings, discs/electronic media
