Protection conduit CONFiX™ FWS series

corrugatedtubularfor cables

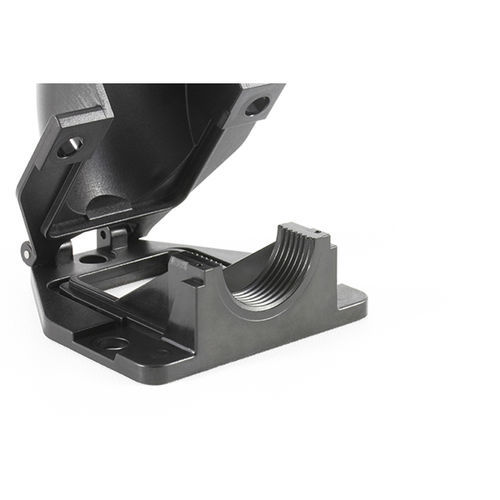

The 90° angled conduit fitting CONFiX™ FWS is for installation of parallel corrugated cable protection conduits, e.g. in machines, control panels or control cabinets. The liftable cover is tightly fixed by a hinge. Therefore, the system is fast and easy to install. CONFiX™ FWS is offered in the following versions: CONFiX™ FWS-A with metric internal thread M16 to M50 CONFiX™ FWS-B with a grooved conduit clip for types with sizes NW 13, 17, 23, 29, 37 and 50 The available colours are grey (RAL 7011) and black (RAL 9001). Specifications IP rating (EN 60529) - IP54 Material - Polycarbonate Flame class - UL94-V0, self-extinguishing Operating temperature - -30 C° to 100 C° Properties - silicone free, halogen free Mounting options - Screw type mounting Advantages & benefits Hinged cover Fast and easy assembly Functional design
