Rubber cable grommet UT-DT series

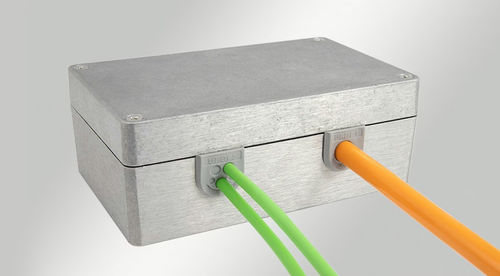

membrane cable grommet is used to route non-assembled cables. It can be used wherever the use of the UT cable grommets is possible. Its use allows the packing density of the routed cables to be increased. The wall thickness of the housing can range from 1.0 to 4.0 mm. It is used in various types of housings made from different materials. These include plastic, metal and die-cast aluminium housings. By screwing the cover tightly on the enclosure, pressure acts on the cable grommet and, depending on the properties of the enclosure, enables a sealing rate of up to IP54. Specifications IP rating (EN 60529) - IP54 Flame class - UL94-V0, self-extinguishing Operating temperature - -40 C° to 100 C° Material - Elastomer Mounting options - Snap-in Properties - UV-resistant, silicone free, halogen free Advantages & benefits Up to five cables can be routed with one grommet For housing wall thickness from 1 – 4 mm Easy, tool-free installation Cost-effective solution
