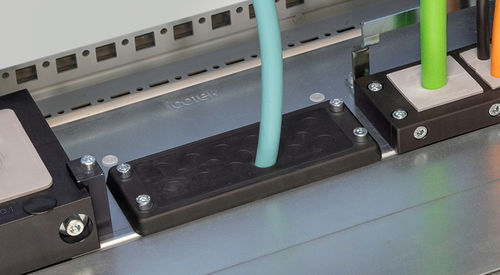

Cable entry plate KEL-DPR series

cable entry plate is based on the proven KEL-DP 24, but has an integrated polypropylene reinforcement frame. With the KEL-DPR 24, up to 48 cables from 1 to 16.1 mm can be inserted in the smallest of spaces and sealed in accordance with IP65. The KEL-DPR 24 cable entry fits standard cut-outs for 24-pin heavy-duty connectors. Electrical and pneumatic lines can be assembled in a matter of seconds. The corresponding membrane is perforated and the cables are simply pushed through. The KEL-DPR also allows the cables to be routed through the backside of the plate. Perforated membranes can be sealed with ST-B Plugs. A version with M4 threaded bushings is optionally available for screw assembly from the enclosure interior. Please ask us about your desired variant. Specifications IP rating (EN 60529) - IP54, IP55, IP64, IP65 Flame class - UL94-V0, self-extinguishing Operating temperature - -40 C° to 90 C° Material - Elastomer Base frame: Polypropylene Mounting options - Screw type mounting Properties - halogen free, silicone free Advantages & benefits Strain relief due to reinforced membrane Sealing in accordance with IP65 Very quick installation Very high cable density Cables can be fed through from both sides Suitable for standardised cut-outs Optionally available with M4 threaded bushings Visually attractive design
