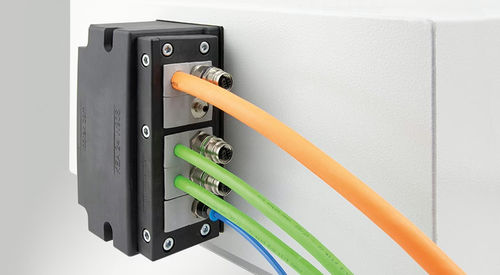

Cable entry plate KEA series

is a cable entry adapter for accommodating various icotek cable entry frames and plates of size 24. The adapter allows cables to be routed at a 90° angle. The installation direction can be horizontal or vertical. The cables are protected against mechanical tension in the entry and exit areas. Wall mounting is done either with screws and nuts or by using threaded bushings. A suitable wall seal is included in the scope of delivery. icotek also offers suitable punches for the cut-out. The cable entry plates KEL-DP 24 Type B can be easily snapped onto the KEA 24 W90 R. The cable entry frames KEL 24, KEL-U 24, KEL-ER 24 and the cable entry plates KEL-DPZ 24 and KEL-DPU 24 can be screwed onto the KEA 24 W90 S. This enables the insertion of pre-assembled and non-assembled cables. Specifications IP rating (EN 60529) - IP54, IP65, IP66 Flame class - UL94-V0, self-extinguishing Operating temperature - -40 C° to 120 C° Material - Polyamide Mounting options - Screw type mounting, Snap-in Properties - vibration proof, silicone free, halogen free Advantages & benefits Allows the adaptation of cable entry plates at a 90° angle Quick and easy, partly tool-free (R variant) assembly High packing density in combination with cable entry plates (size 24) Mechanical protection at cable entry and exit due to the closed housing Universal 90° adapter for many icotek products in size 24 Space saving within the control cabinet due to the bending radius being shifted outwards Edge protection Wall seal included High stability due to the geometry of the housing
