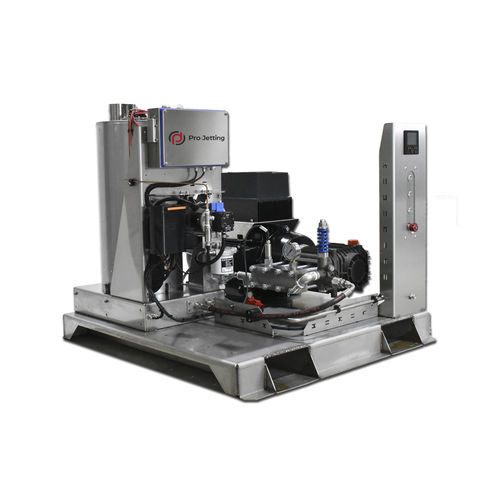

Pumping skid

for superheated water

The hot water skids have an intelligent control and are therefore extremely reliable, user-friendly and economical in use. The units are made of stainless steel and use 12/220 volts. The units are controlled with a waterproof 2.8 "color display. The water pressure, temperature and status are displayed and the temperature can be set. The system also has an auto diagnosis that continuously monitors the status of the system. This means that a message is given when, for example, the diesel filter is dirty, the diesel in the diesel tank is almost empty or the burner is dirty. Due to the hot water output, the hot water units perform exceptionally in removing difficult substances such as oil, grease and other stubborn dirt. A Skid of 24kw is suitable for 500 bar and 25 LPM. Of course it is possible to install several water burners in one system to obtain larger quantities of hot water. The controls of the hot water burners adjust themselves to each other so that the outgoing water temperature is perfectly stable. Features High effectiveness in removing oil, fats and other stubborn substances Compact and precise to mobilize Possibility for use with 2 independent HD guns by mounting two pumps Low weight CE & SIR certified Customization possible Additional accessories on request
