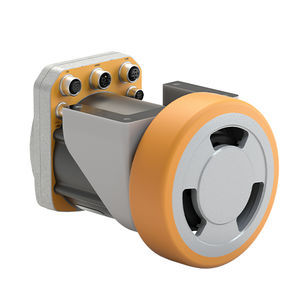

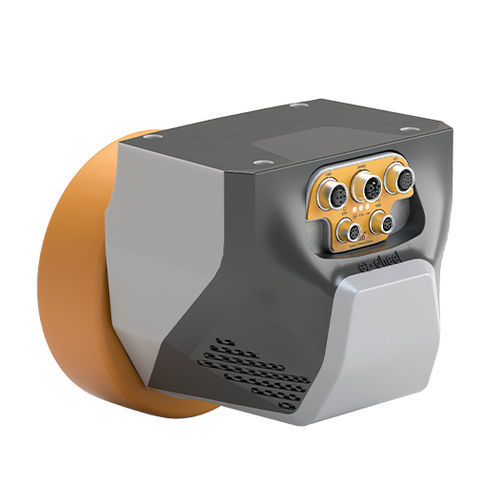

Drive wheel with integrated safety SWD® 150BLDCfor AGVIP66
Add to favorites
Compare this product
Characteristics
- Type
- BLDC
- Applications
- for AGV
- Protection level
- IP66
- Other characteristics
- with integrated safety
- Torque
45 Nm, 63 Nm
(33.19 ft.lb, 46.47 ft.lb)- Power
185 W
(0.25 hp)- Load
700 kg
(1,543.2 lb)- Speed range
Max.: 3.7 km/h
(2.3 mph)Min.: 0 km/h
(0 mph)- Diameter
150 mm
(5.91 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)- Weight
10.5 kg, 11.3 kg
(23.15 lb, 24.91 lb)
Description
The first safety wheel drive for AGV/AMR
The new SWD® range, in addition to integrating electric traction functions, now includes a complete IT system allowing it to operate autonomously and safely in its environment.
The combination of SWD® with safety scanners addresses the functional needs of mobile robots, in full compliance with global machine safety regulations.
The SWD® wheels are compatible with all safety laser scanners on the market, ensuring a SIL2/PLd level safety package.
Main features of the range:
• Up to 2.100 kg moved
• PU 92 sh.A flat profile
• Safe motion control functions
