Drying oven TRANSFORMERS-E.V.E.-1
curingpolymerizationresin curing

drying oven
drying oven
drying oven
drying oven
drying oven
Add to favorites
Compare this product


Characteristics

Function
drying, curing, polymerization, resin curing, hardening
Configuration
truck-in
Heat source
electric, hot air
Atmosphere
air circulating, forced convection
Other characteristics
programmable, high-volume, industrial, custom, low energy consumption
Capacity

Min.: 16 m³ (565 ft³)

Maximum temperature

Min.: 20 °C (68 °F)

160 °C (320 °F)

Max.: 200 °C (392 °F)

Description

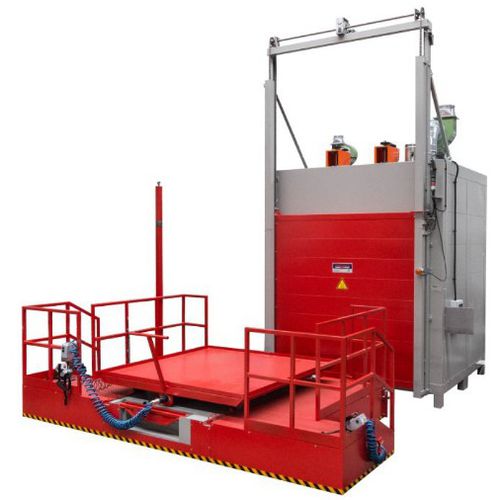

Temperature: up to 200°C Description: Static oven used in the drying treatments of oil and resin filled transformers. Its efficiency guarantees the best performance possible and also its durability. The internal temperature uniformity is ensured thanks to inlet and outlet air plenums, that enable a smooth air flow on every part of the product to be treated. The trolley for moving the product is available in many configurations: pneumatic or manual, with or without the additional trolley translating shuttle (as shown in the picture). Applications: resins curing and also, but not limited to, electrical machines (transformers, motors, inductors, etc...)
