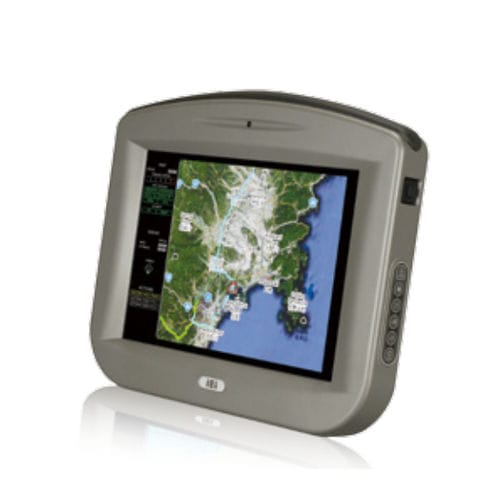

Panel PC with touch screen S12A series
TFT LCD12"Intel® Atom N270

Panel PC with touch screen - S12A series - IEI INTEGRATION - TFT LCD / 12" / Intel® Atom N270
Panel PC with touch screen - S12A series - IEI INTEGRATION - TFT LCD / 12" / Intel® Atom N270
Panel PC with touch screen - S12A series - IEI INTEGRATION - TFT LCD / 12" / Intel® Atom N270 - image - 2
Add to favorites
Compare this product

Characteristics

Screen type
TFT LCD, with touch screen
Display size
12"
Processor
Intel® Atom N270
Resolution
1024 x 768
Construction
fanless, housed
Applications
industrial, for marine applications
Protection level
waterproof, IP67
Memory size

2 GB

Description

» IP 67 (NEMA 6) fully-enclosed aluminum die cast enclosure and IP 67 waterproof lockable I/O<br>» Fanless system integrated with Intel® Atom™ N270 1.6GB processor for ultra low voltage<br>» Supports one 2.0 GB (max.) 400/533 MHz DDR2 SO-DIMM<br>» Built-in internal Wi-Fi antenna supports 802.11b/g/n high standard<br>» CAN-bus interface for automotive applications<br>» Ambient light sensor detects ambient light for automated screen adjustments to optimize viewing (Advanced Deep Dimming to Black for sunlight readable model)<br>» Standard VESA 75/100 compliant<br><br>Specifications<br><br>Display<br>Backlight MTBF(hrs) 50000<br>Brightness(cd/m2) 500<br>Contrast Ratio 700 : 1<br><br>Environment<br>Humidity 10% to 95% (non-condensing)<br>Operating Temperature -10°C~50°C<br>Storage Temperature -20°C~60°C<br><br>LCD<br>LCD Color 16.2M<br>Pixel Pitch (mm) 0.3075mm x 0.3075mm<br>Viewing Angle (H-V) 160° / 160°<br><br>Physical Characteristics<br>Dimensions (LxWxH) (mm) 345.3 x 300.4 x 77<br><br>Weight<br>Weight 4.2 kg/5.3 kg<br>
