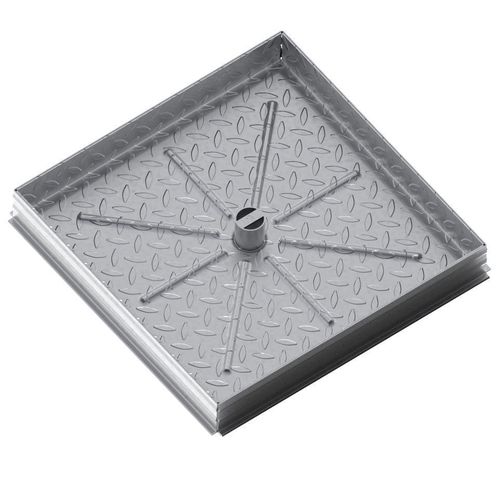

Square manhole cover 10.005.005 series

Square recessed cover for 25, 50 or 75 mm infill with siphon, made of galvanized checker plate, with hydraulic sealing, suitable for concrete or ceramic finish. Features Class A15 and B125, according to EN124:1995 Cover made from 2.5 mm thick galvanized checker plate, Ref. S235JR+AR, single-piece with ribbing underneath to enhance strength and concrete adhesion Frame made from 2 mm galvanized steel, Ref. S235JR+AR, with side reinforcement ribs and bottom flange for more effective fixing in concrete Hydraulic seal to prevent the passage of odors and gases Conical design with siphon effect for easy opening Central lifting handle Application Outdoor areas used exclusively by pedestrians and cyclists Comparable areas where hygiene and resistance to corrosion from rainwater or other liquids is required Allows for a high-quality finish in concrete, ceramic tile, or other materials to keep the cover invisible Recommended: Apply consistent sealing compound around the frame and siphon to ensure maximum watertightness
