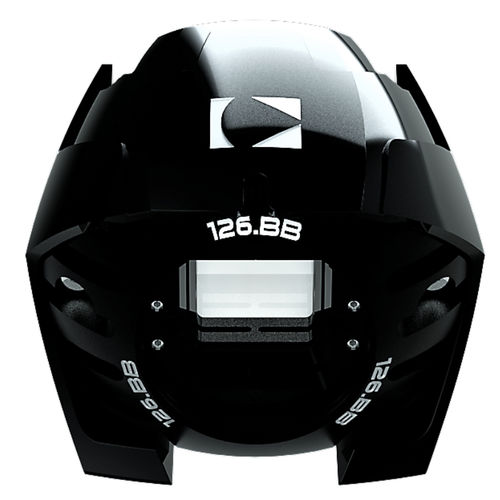

Wavefront sensor HASO4 126 BROADBAND

HASO4 126 Broadband wavefront sensor provides high-resolution and broadband for maximum precision and versatility. We offer a unique combination of expertise in high-quality microlens production, software development and accurate factory calibrations. This allows the HASO4 126 Broadband to provide high performance for applications requiring a high spatial frequency and very large dynamic range. HASO4 126 Broadband is fully compatible with our Optical Engineer Companion platform and set of optical metrology tools. These include the R-FLEX2 and R-FLEX2 SWIR optical metrology platforms, and the R-FLEX LA and R-FLEX LA SWIR systems for various collimated beams from 35 to 150 mm (custom diameters available). Applications Quantify the optical system’s aberrations Align the system to ensure that it performs at its best Predict the optical system’s performance in terms of focalization capability or imaging quality Quantify the effects of temperature and gravity on the system’s performance Verify that the optics comply with specifications Directly measure the optical system’s wavelength dependency Pilot a wavefront corrector to change the system’s aberrations Features Direct wavefront acquisition of F/5 beams with λ/100 accuracy, including astigmatism and high-order aberrations Beam collimation with accuracy better than 300m radius of curvature Control and adjustment of axial laser beam deviation better than 3 μrad rms 3D localization of focal spot with 0.1 μm rms for lateral and 1 μm rms for axial resolution (0.1 NA beam) Patented technology for simultaneous and independent phase and intensity measurements with HASO4 126 Broadband.
