Inclined bagging machine VICEVERSA
VFFSweightfor the cosmetics industry

inclined bagging machine
inclined bagging machine
Add to favorites
Compare this product


Characteristics

Type
inclined
Technology
VFFS, weight
Applications
for the cosmetics industry, for the food industry, for soap, for the paper industry, for the pharmaceutical industry, for the chemical industry, medical, sachet, for bulk materials, pet food, detergent, for the textile industry, for the wood industry
Other characteristics
4-seal, PLC-controlled, semi-automatic, high-speed, compact, 3-seal, multi-line, for small parts, high-speed, with linear weigher, rotary
Throughput

Max.: 25 p/min

Min.: 20 p/min

Description

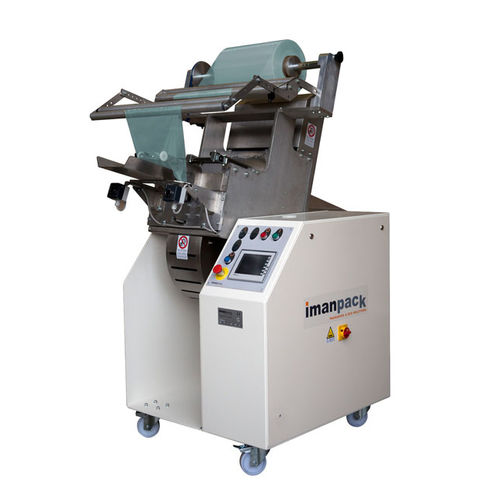

The small tilting packaging machine allows you to create packages of various lengths for different types of product thanks to the particular rotating unit comprising a sealing and forming unit. This system guarantees multiple applications with horizontal, vertical and intermediate position product feed options. PLC managed operating parameters and programmes. The machine can also be equipped with a number of accessories upon request, such as printers, print centring photocells, European hole punch etc. • Reel holder, forming unit and sealing units grouped together to form a single rotating unit. • Adjustable forming tube. • PLC managed operating parameters and production cycle programming. • Touchscreen control keyboard. • Possibility to add accessories upon request, such as printers, photocells, European hole punch and feeding and discharge systems. • Machine weight: 300 kg. • Installed power: 3 kW – 220 V – 1Ph. • Machine built according to CE Standards.

VIDEO

Catalogs
