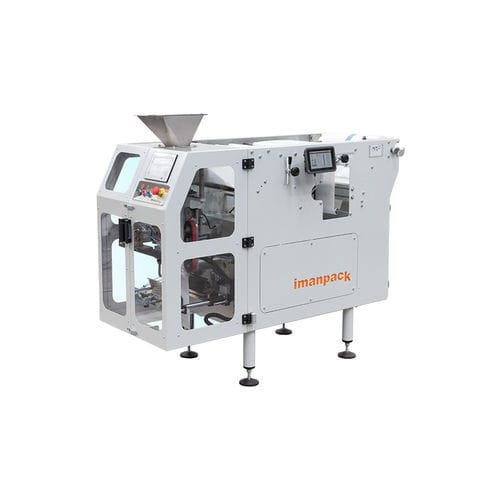

Plastic film form-fill-seal machine Microvert SMART

for packagingPLC-controlledcompressed air

Overview
The Microvert SMART is a vertical form-fill-seal (VFFS) machine designed for packaging small metallic parts and free-falling products. It integrates easily with upstream feeders (counting modules, weighers, assembly machines or manual loaders) to form compact, efficient packaging lines. PLC control and an integrated electrical cabinet facilitate automation and integration.

Key features

• Carbon steel or stainless-steel frame.
• Longitudinal and cross sealing units managed by PLC.
• Encoder-regulated bag length.
• Double film unwind for long bags.
• Compatible with PE, cellophane, paper or heat-sealable materials.
• Integrated electrical cabinet and front-door touch screen (Imanpack interface).
• Easily accessible pneumatic unit for maintenance.
• Wide inspection openings on both sides.
• Compliant with CE regulations.

Performance
Model | Film width | Bag width | Bag length | Max speed (bags/min)
Microvert SMART | 420 mm | 50–190 mm | 25–600 mm | 30–35

Construction details

• Max reel diameter: 300 mm.
• Max film width: 420 mm.
• Max forming tube diameter: 120 mm.

Accessories

• Print-on-film systems.
• Heavy-product bag support.
• Additional forming tubes and quick-change plates.
• Registration mark sensor for printed film.
• Multipack/chain packaging options.
• European hole punch.

Technical specifications

• Speed: 30–35 bags/min (depending on format and product).
• Controller: Rockwell Allen Bradley® or Siemens® PLC with Imanpack HMI.
• Sealing width (film width): 420 mm.
• Product width (max): up to 115 mm.
• Product length (max): up to 400 mm.
• Product weight (max): up to 5 kg per dose (depends on dimensions).
• Bag size range: 50 mm to 450 mm.
• Film reel core diameter: 76 mm; outer diameter up to 300 mm; max reel weight up to 50 kg.
• Wrapping materials: PP (heat-sealable), PE or paper film.
• Installed power: 2.3 kW — Voltage 400 V — 3ph + PE — Rated current 5 A.
• Compressed air: 6 bar; air consumption: 80 l/min.
• Max dose weight and pieces per dose: depend on product dimensions.
