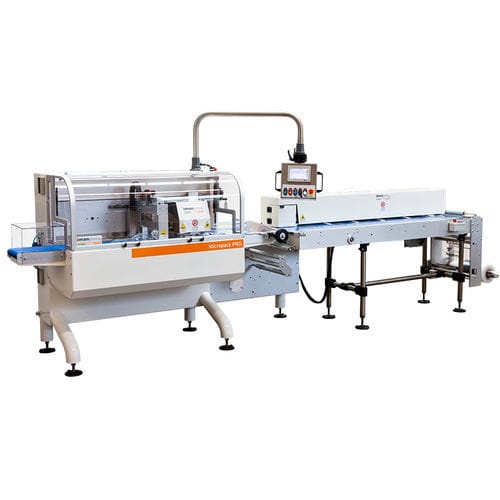

Horizontal bagging machine Micropack PRO Bagmatic

flow-packHFFSPLC-controlled

Description
Horizontal flow-wrapper designed for polyethylene films with an extended (long-dwell) transverse sealing cycle and a reel holder positioned from below. Rapid automatic format change by entering new pack data, reducing operator intervention. Suitable for both heavy and delicate products, and adapted to small production batches where frequent format changes occur.

Product range

• Length: from 75 mm
• Width: from 40 to 230 mm
• Height: up to 140 mm
• Length variation range: 25 mm

Speed

• Up to 50 packs/min

Detailed features

• Reel holder from below for film widths up to 500 mm.
• Universal forming unit adjustable by hand-wheel.
• Feeder conveyor belt, length 2200 mm.
• Height-adjustable longitudinal sealing unit with rubber-coated wheels and Teflon-coated belts coupled with heated sealing pads.
• Long-dwell transverse sealing unit with 250 mm sealing bars driven by pneumatic cylinders.
• Independent axis motors for precise motion control.
• PLC control with Imanpack operator interface.
• Machine built in compliance with CE standards.

Accessories

• Automatic feeder system
• European hole punch
• Labelling and printing units
• Gas supply (MAP) system
• Print-centering photocell

Technical specifications

• Speed: up to 50 bags/min
• Crimper / sealing width: 250 mm
• Product width: 40–230 mm
• Product length: from 75 mm
• Product height: up to 140 mm
• Film reel core diameter: 76 mm
• Film reel outer diameter: 250 mm
• Film reel width: 500 mm
• Wrapping material: polyethylene films
• Compressed air required: 6 bar
• Feeder conveyor length: 2200 mm
• Length variation range: 25 mm
• Control: PLC with Imanpack operator interface
