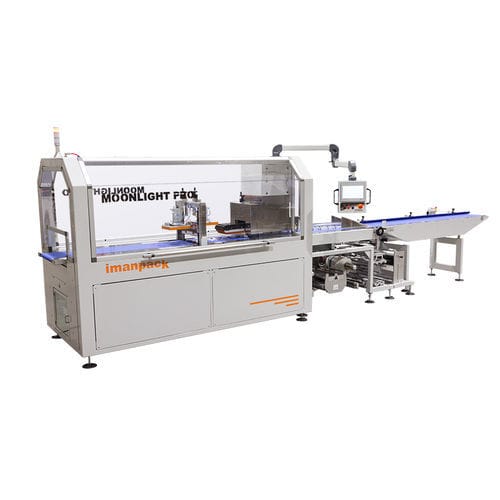

Horizontal wrapping machine Moonlight PRO LTS

automaticwith conveyorwith feeding device

Overview
Horizontal wrapping machine with extended sealing time and 4-axis electronic control. Available for polyethylene (PE) film, polypropylene (PP) or paper, with reel loaded from top or bottom. Stainless steel version available on request. Designed for easy integration into existing production lines.

Main parameters

• Speed: Up to 80 bags/min
• Product width: From 20 mm to 420 mm
• Product length: From 20 mm (to unlimited)
• Product height: Up to 220 mm
• Bag length: From 50 mm up
• Film reel width: 600 mm (optional 900 mm or 1200 mm)

Key features

• Main frame painted RAL 7035
• 2500 mm long chain-pitch infeed conveyor
• Universal forming tunnel adjustable by handwheel
• Motorized cross sealing jaws (sealing jaws width 370 mm)
• Longitudinal sealing group for polyethylene film, or heat sealing for polypropylene film or paper
• Axis control by brushless motors for:
  • Cross sealing jaws stroke
  • Longitudinal sealing wheels
  • Transport belt through the sealing jaws
  • Infeed conveyor
• Upper cut & seal unit prepared for easy integration of accessories
• Pneumatic expanding reel holder
• Easy film change
• Motorized height adjustment of longitudinal sealing group
• Electrical cabinet integrated into the left side of the machine
• Adjustable working height: 960 +/- 30 mm standard (possible elevation by support legs)
• Rockwell Allen Bradley® PLC control with Imanpack touch screen interface
• Machine built according to CE standard

Film feeding
Max reel diameter: 300 mm in the standard version; up to 350 mm on request.
Film widths:

• PBA 600: max. 610 mm
• PBB 900: max. 910 mm

Accessories

• Automatic feeding
• UVC lamps for film sterilization
• Gas injection
• Oxygen residual continuous analyzer
• Mechanical bellows
• Labelling systems
• Print-on-film systems
• Wire cutting and film trimming device
• Air conditioner on control panel door

Options

• Stainless steel version
• Motorized pneumatic expanding reel holder
• Automatic, semi-automatic or manual reel change
• Euro hole punch

Technical specifications

• Speed: up to 80 bags/min
• Electronic platform: Rockwell Allen Bradley®
• Crimper (sealing width): 420 mm
• Product width: from 20 mm to 420 mm
• Product length: from 20 mm to unlimited
• Product height: up to 220 mm
• Product weight: up to 8 kg (other options upon request)
• Bag size: from 50 mm to unlimited
• Film reel core diameter: 76 mm
• Film reel outer diameter: up to 300 mm (up to 350 mm on request)
• Film reel width: up to 600 mm (optional 900 mm or 1200 mm)
• Film reel max weight: up to 100 kg
• Wrapping material: PP (heat sealing) or PE (polyethylene) or paper film
• Installed power: 9 kW - Voltage 400 V - 3ph + PE
• Compressed air: 6 bar
• Air consumption: 180 l/min
• Adjustable working height: 960 +/- 30 mm
• Reel holder: pneumatic expanding (motorized optional)
