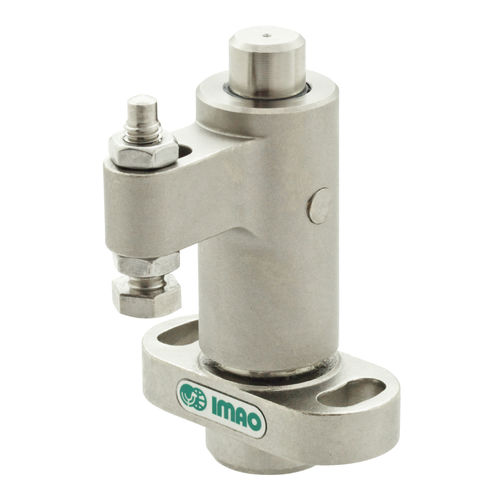

Pneumatic clamp AMWSW
machiningworkpieceswing

pneumatic clamp
pneumatic clamp
pneumatic clamp
Add to favorites
Compare this product


Characteristics

Type
pneumatic
Applications
machining, workpiece
Other characteristics
swing, adjustable, compact, double-acting
Clamping force

Max.: 0.7 kN

Min.: 0.4 kN

Description

Standard compact pneumatic swing clamp. Pressure sensor detects the clamping/unclamping conditions by preparing air leakage checking hole. - Compact Design! For space-saving mounting. - Easy Mounting! No height adjustment is required. - High Clamping Force! By wedge mechanism, the clamping force is 5 times greater than the same size of air cylinder. - High Holding Capacity! By wedge mechanism, the clamp arm stays still against reaction force. Clamping Force: 0.4 kN, 0.65 kN Operating Air Pressure: 0.3 - 0.7 MPa

VIDEO
