Manually-controlled locating pin CP701

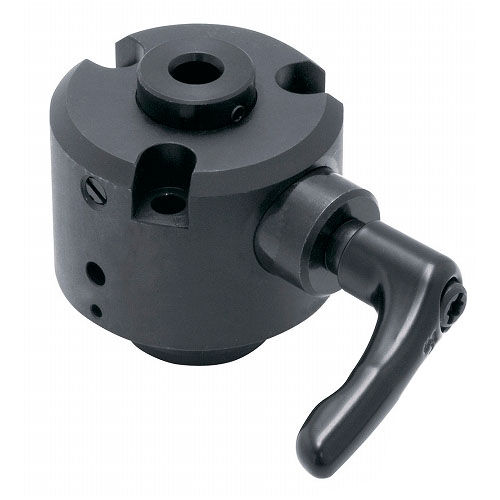

Manually-controlled locating pin - CP701 - Imao Corporation
Manually-controlled locating pin - CP701 - Imao Corporation
Manually-controlled locating pin - CP701 - Imao Corporation - image - 2
Add to favorites
Compare this product
Go to the Imao Corporation website for more information

Characteristics

Options
manually-controlled

Description

Extendable Work Locators
- Features -
  • The piston is projected by a simple half-turn of the lever.
  • The retractable piston allows easy and reliable positioning, even for heavy workpieces.
  • The lever can be extended with an accessory for remote operation.
- Specifications -
  • Body Dia (mm): 50 / 65
  • Height (mm): 36 / 46
