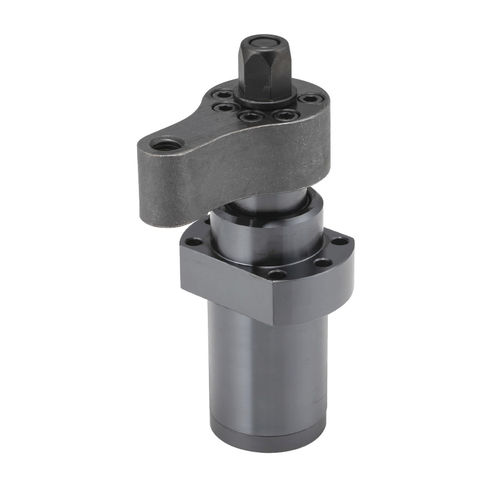

Swing clamping device PTSW3 series

mecanical clampsteel

Nutrunner Clamps
Nutrunner-actuated clamps automate workholding in robotic machining and assembly lines, simplifying fixture design and eliminating the need for hydraulics.


Nutrunner Swing Clamps
- Features -

• Mechanical swing clamp operated by a nutrunner, providing secure and repeatable actuation for automated environments.
• Clamp arm swings into position and lowers, making workpiece loading and unloading smooth and hassle-free.
• Rigid clamping is achieved through a fixture-embedded design.
• Optimized for robotic automation on machining and assembly lines.

- Specifications -

• Clamping Force (kN): 6 / 10
• Flange (mm): 70 / 90
• Height (mm): 104 / 120
