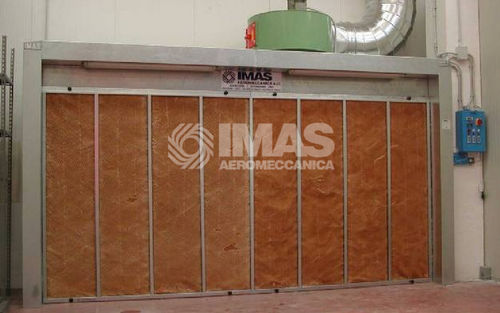

Open paint booth EN series

for partsfor vehiclesfor the wood industry

Dry paint spray booths for high efficiency filtration of dust generated by finishing operations. Supplied off the shelf with electric panel, ceiling light, differential pressure switch, spray go-ahead and already set up for activated carbon filtration. Average speed over whole section ca. 0.5 m/s. Paint spray booths for filtration of dust generated by finishing operations with dual water wash system, supplied off the shelf with electric panel, ceiling light, differential pressure switch, electrovalve for consent to running of painting spray-gun and already set up for activated carbon filtration. In order to best meet your aspiration needs for the emissions produced by the painting operations, we intend to propose a painting booth with water film filtration. This booth, made of galvanized sheet panels, is equipped with an electrical panel with operating hour counter, differential pressure switch for filter clogging alarm, safety solenoid valve for the operation of the painting system only when the booth is in operation, ceiling lights of about 600 lux and predisposition for the insertion of activated carbon cartridges. The electric fan ensures uniform suction over the entire surface, with speed that meets the current EC regulations. The cabin can be supplied with a water collection tank, coveringwith a metal grid. The collection tank will be positionedin such a way that it will remain aligned with the floor. The air sucked and filtered from the booth will be expelled into the atmosphere through vent piping with an increased diameter. It also has a a rain cover system with an open top and ports for sampling analysis in accordance with "UNI 10169".
