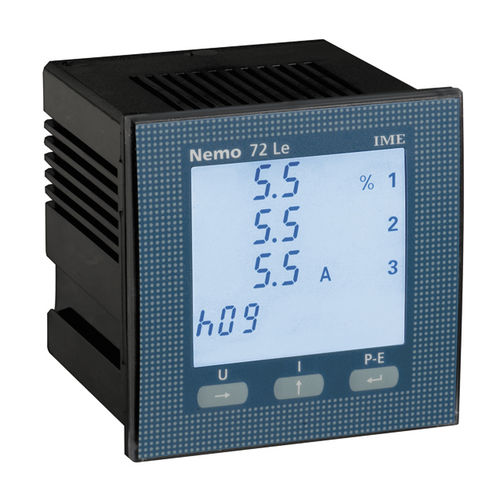

AC energy network analyzer Nemo 72-Le
power qualitypowerfor integration

AC energy network analyzer
AC energy network analyzer
Add to favorites
Compare this product


Characteristics

Application domain
AC energy network
Measured value
power quality, power
Configuration
for integration
Other characteristics
RS485

Description

Three-phase power analyzer for lines 1Ph+N / 3F / 3Ph+N for LV grid via current and voltage (max primary 1kV) Flush mounting 72x72mm with large backlit LCD display Bidirectional count of active energy (kWh) in Class 0.5 and reactive energy (kvarh) in class 1 according to EN/IEC 61557-12 Harmonic analysis for current and voltage up to the 50th order + crest factor Power threshold settable for operating hour counter True RMS measures (RMS): kWh, kvarh, A, V, kW, kvar, kVA, HZ, power factor, h, average values of A, kW, kvar, kVA Pulse outputs S0 / alarm + RS485 Modbus RTU / TCP integrated on board, also available with output BACnet

Catalogs

Nemo 72  Le
Nemo 72 Le
9 Pages
