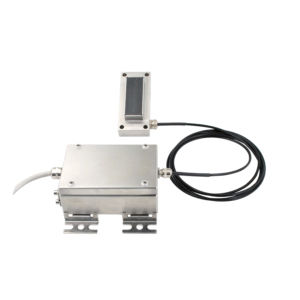

Insertion humidity probe SONO-Ex MIX mini Standard

ATEXstainless steelcompact

ATEX moisture probe to determine bulk solids SONO-Ex MIX mini Standard - standard conductivity SONO-Ex MIX Mini: mixer probe with wear-resistant ceramic window The stainless steel housing of the probe and the ceramic window make the SONO-Ex MIX Mini a wear-resistant mixer probe for daily use. The probe is firmly connected to the electronics housing in which the TRIME TDR transmitter is located. This generates a high-frequency TDR pulse with 1 GHz. The TDR pulse travels along the waveguide of the probe and creates an electromagnetic field around the probe in the material. The transit time of this pulse is measured with a resolution of one picosecond (1 × 10-12) to determine humidity and conductivity. Advantages The compact measuring window of 90 x 36 mm is also suitable for installation in confined areas In this way holding arms in the intensive mixer can be avoided The probe automatically recalibrates itself in the event of abrasion Installation in screw conveyors is also quick and easy Thanks to the special ceramic, the mixer probe is extremely robust and has a long service life You receive precise measured values through a representative measuring field and the disk-shaped radar scan The measurement behavior is optimized for color and fine components in the mixture Applications The SONO-Ex MIX Mini mixer probe is suitable e.g. for installation in: Intensive mixer Special mixer container screw conveyer Material hopper Conveyor belts
