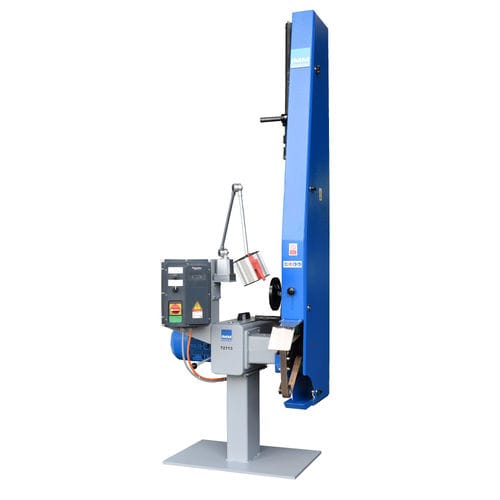

Turbine blade grinding machine 72713

surfacemanually-controlledhigh-precision

Robust lowest vibration, therefore prevention of vibration endused harm Continuous operation Operation modes S1 for continuous operation Safe Build to the latest safety standards with protection covers and optional safe-stop. Durable Heavy duty materials and components Made in Germany Quality 100 % Made in Germany The series 72713 is a machine with one spindle. It is especially sutiable for three-dimensional work pieces. Machine Characteristic Various contact wheel dimensions, quickly changeable Beak-shaped belt guidance (especially for inner radii) Slack belt unit Three-stage V-belt drive for selectable speeds with 1,500 rpm motor Main switch with low voltage trip CE-conformity Models Available for aluminium processing Various drive options possible (see table) Options Frequency converter for infinitely variable speed control Braking device for rapid stop of spindle Machine lamp Technical data Belt dimensions - max. 50 x 3.500 mm Contact wheels - Ø 20 - 120 mm, 20 - 50 mm Breite Possible spindle speeds* - 700, 800, 900, 1.000, 1.120, 1.250, 1.400, 1.600, 1.800, 2.000, 2.240, 2.500, 2.800 U/Min Voltage - 400 V, 3/N/PE, 50 Hz Operation mode, protection class - S1, IP 54 Extraction pipe - Ø 120 mm Colour - Grey (RAL 7040), Blue (RAL 5017) Weight base machine - approx. 290 kg
