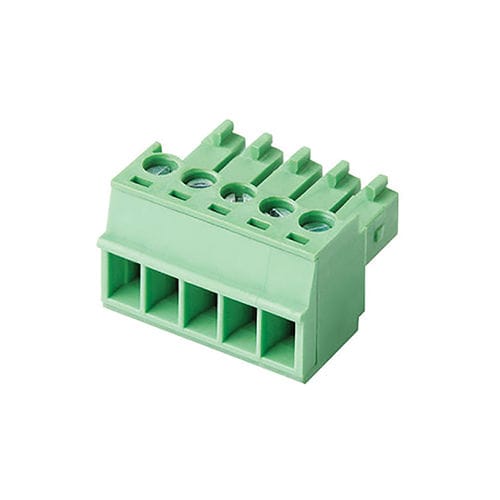

Plug-in terminal block 20.1550M/5-ESscrew connectionstandardcopper
Add to favorites
Compare this product
Characteristics
- Mounting
- plug-in
- Connection
- screw connection
- Other characteristics
- copper, IEC, standard
- Number of poles
- 5-pole
- Cross-section
1.5 mm²
(0 in²)- Current
8 A
- Nominal voltage
300 V
Description
Terminal Block Plug Horiz.
3.50mm,5 Way,
Rising Clamp Green,Slot Screw
Pack Size: 100
3.5mm (3.81mm) Pitch, Terminal Block Plug, Green, Slot Head, Solid Block
Key Features
• UL94-V0
• PA66
• 3.50mm (3.81mm) Pin Pitch
• RoHS Compliant
• xx = Number of Poles (available from 2~24 poles)
• Slot Head Screw (Standard)
Technical Data
• Pitch 3.50mm (3.81mm)
• IEC Rating 250V 10A
• Solder Pin n/a
• Wire Clamp Copper Alloy, Nickel Plated
• Wire Range 28~16AWG (1.5mm2 )
• PCB Hole Diameter n/a
• Stripping Length 6~7mm
• Screw M2.0 Steel Zinc Plated
• Screw Type Slot Head
• Screw Torque 0.2Nm (1.7lb/in)
• Insulation Voltage AC2000V / 1 Min
• Initial Contact Resistance 20mΩ
• Insulation Resistance 500MΩ / DC500V
• Temperature Range -40 to +105°C
