Depressed center cutting disc
for cast ironfor ceramicsfor non-ferrous metals

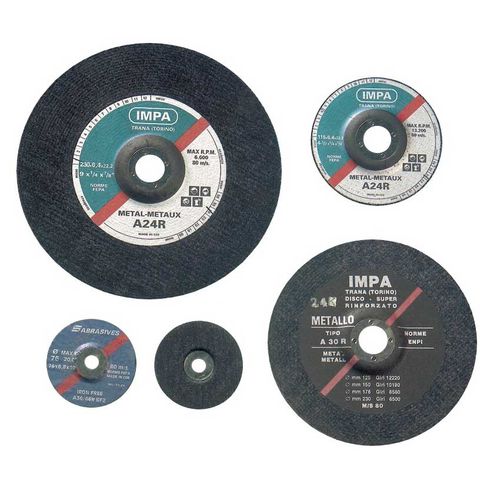

Depressed center cutting disc - Impa abrasivi - for cast iron / for ceramics / for non-ferrous metals
Depressed center cutting disc - Impa abrasivi - for cast iron / for ceramics / for non-ferrous metals
Depressed center cutting disc - Impa abrasivi - for cast iron / for ceramics / for non-ferrous metals - image - 2
Depressed center cutting disc - Impa abrasivi - for cast iron / for ceramics / for non-ferrous metals - image - 3
Add to favorites
Compare this product
Go to the Impa abrasivi website for more information

Characteristics

Material to be cut
for stainless steel, for cast iron, for marble, for granite, for ceramics, for non-ferrous metals
Disc material
steel, aluminum oxide, resin, zirconium oxide, silicon carbide
Application
for portable machines, for metal cutting, for metal grinding, for stone cutting, for hand tools, for metal finishing
Other characteristics
high-speed, dry cutting, for precision cutting, reinforced, depressed center, for angle grinder, for manual grinders, fiberglass-reinforced, high-performance, low-vibration
Disc diameter

Min.: 76 mm
(3 in)

Max.: 230 mm
(9.1 in)

Bore diameter

Min.: 10 mm
(0.39 in)

Max.: 22.23 mm
(0.88 in)

Description

Reinforced depressed centre cutting / grinding discs for portable machines (80m/s) – resin bond Ø 76x3,2x10 mm Ø 115x3,22x22,23 mm Ø 125x3,2x22,23 mm Ø 150x3,2x22,23 mm Ø 180x3,2x22,23 mm Ø 230x3,2x22,23 mm SPECIFICATIONS A 30 R - This type is recommended for the metallurgical industry in general, on iron and soft steels. A 30 P - Recommended type for alloy steels, steel cast iron, stainless steels AC 30 N - Type suitable for cast iron C 30 R - Type for stone – marble – building materials in general GRINDING DISCS (Depressed center) Ø 76x6,4x10 mm Ø 115x6,4x22,23 mm Ø 125x6,4x22,23 mm Ø 150x6,4x22,23 mm Ø 180x6,4x22,23 mm Ø 180x8,0x22,23 mm Ø 230x6,4x22,23 mm Ø 230x8,0x22,23 mm
