Textile cutting machine Endcutter
knifecableCNC

textile cutting machine
textile cutting machine
Add to favorites
Compare this product

Characteristics

Material
textile
Technology
knife
Product handled
cable
Control type
CNC
Associated function
trimming
Applications
for industrial applications

Description

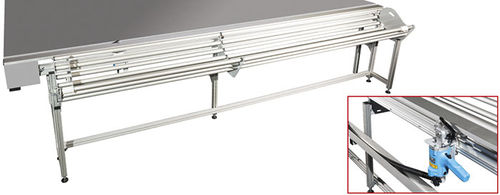

This new version.18 is equipped with a cable towing device as standard, so the cable runs in a drag chain under the cutting device in a U-shaped channel. All made in anodized matt aluminum or RAL 9006 coated. This endcutter has no annoying cable floating device above the workplace and cuts all textile materials and synthetic fibers from 80g / sqm to 800g / sqm. With the built-in grinder you sharpen the knife yourself - the large diameter of 100 mm ensures extremely low grinding cycles. Fits existing trimming tables or our adjoining. Please sketch table height above, thickness of table top and table overhang (preferably 20 cm) when ordering. The 2m machine has a max. Cutting width of 180 cm. This plant is also delivered in other widths eg cutting width 3,2m. 230 VAC, 16 A.
