GPU PC ESP2 i7 7660U
boxwall-mountedIntel® Core i7

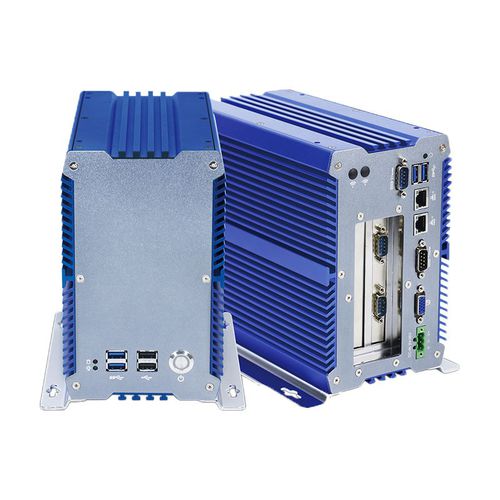

GPU PC - ESP2 i7 7660U - INDATECH - box / wall-mounted / Intel® Core i7
GPU PC - ESP2 i7 7660U - INDATECH - box / wall-mounted / Intel® Core i7
GPU PC - ESP2 i7 7660U - INDATECH - box / wall-mounted / Intel® Core i7 - image - 2
GPU PC - ESP2 i7 7660U - INDATECH - box / wall-mounted / Intel® Core i7 - image - 3
GPU PC - ESP2 i7 7660U - INDATECH - box / wall-mounted / Intel® Core i7 - image - 4
GPU PC - ESP2 i7 7660U - INDATECH - box / wall-mounted / Intel® Core i7 - image - 5
GPU PC - ESP2 i7 7660U - INDATECH - box / wall-mounted / Intel® Core i7 - image - 6
Add to favorites
Compare this product

Characteristics

Type
box, GPU
Configuration
wall-mounted
Processor
Intel® Core i7, dual-core
Ports
HDMI, VGA, DDR4L, USB 2.0, RS-232, USB 3.0, SATA III, RS-485, WiFi, PCI, Ethernet, RS-422, mSATA, Mini PCIe
Operating system
Linux® Ubuntu™, Debian Linux, Windows 10, Windows 11
Memory
16 GB

Description

Intel® i7 7660U, 2-core 4-Thread CPU, 15W 1x up to 16 GB RAM Extended power supply range from 9V to 36V 2x LAN Intel® Gigabit Ethernet 6x Serial COM (1x RS232/422/485) 6x USB port (4x USB 3.0 + 2x USB 2.0) 2x Video interface (HDMI – VGA) 2x PCI/PCIe slots with three configuration options available: 1xPCI + 1PCIe or 2x PCI or 2xPCIe MEMORY - Frequency: - 1866/2133 MHz STORAGE - Storage Bay: - 1x Internal 2.5” SSD Bay Optional: - 1x GPIO 1x PS/2 1x Audio ETHERNET - LAN: - 2x Intel® i211AT Gigabit LAN POWER - Power in: - 9 to 36V, DC-in Max Power: - 60W max Adapter: - AC_90~240V / DC_12V_3A/60W MECHANICAL - Material: - Lightweight aluminum alloy with extruded aluminum IO panel Dimensions: - (L)215x(W)115x(H)185mm Weight: - 4.0Kg ENVIRONMENT - Operating temp.: - -10°C to 50°C with air flow Storage temp.: - -20°C to 70°C Humidity: - 5% to 95% Humidity, non-condensing EMC: - CE, FCC, RoHS, ErP Ready OPERATIVE SYSTEM - Fedora 34, pfSence 2.4.4, FreeNAS 11.2
