It irons, dries and length folds flat linen of various sizes.
Functional and flexible

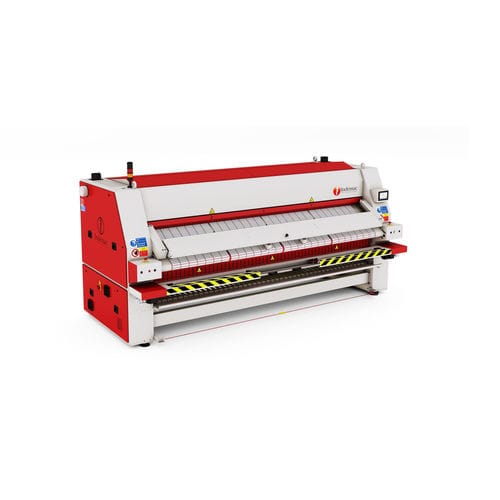

The “IL” series ironer irons, dries and length folds flat linen of various sizes, rom table overlays to bedsheets. .
It can, upon request, be equipped with the automatic feeder that allows only one operator to introduce very large items such as bedsheets. It is suitable to be placed upstream of a folding line; it can also be used as a stand-alone machine, depending on customer requirements.
The ironing belts system ensures optimal ironing quality of the linen, while protecting the fabrics from mechanical stress.
Functional and flexible, the machine can also be used as an ironer only by simply excluding folding.
Roll diameter 600/800/1000 mm
Working width 2100/2600/3300 mm
Heating: electrical, steam, gas (atmospheric / premixed)
Maximum production up to 290 Kg/h
Ironing speed adjustable up to 18 m/min
Automatic control of the ironing speed as the ironing temperature changes
Automatic cooling of the ironing roll
One and two operating lines
Up to 2 longitudinal folds by air jets
Touch-screen panel with self-diagnostic notifications and production data detection
Fume extraction system with automatic fan cleaning
Work programs with fully customised parameters
Linen exit on front (standard) and rear (optional)
