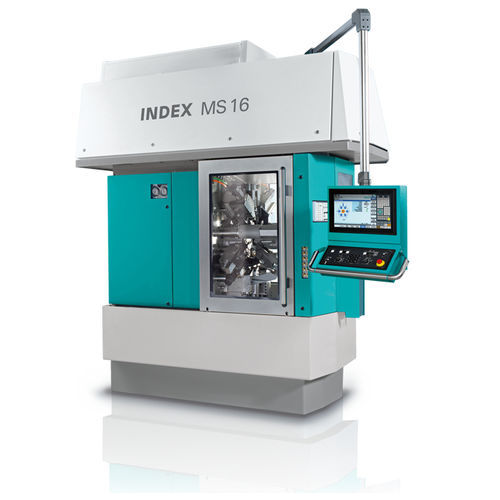

Multi-spindle turning machine MS16-6 CNC2-axishigh-performance
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Other characteristics
- high-performance, multi-spindle
- Spindle speed
Max.: 10,000 rpm
(62,831.853 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Bar capacity
16 mm, 22 mm
(1 in, 1 in)- Axe X
14 mm, 45 mm, 94 mm
(1 in, 2 in, 4 in)- Axe Z
70 mm, 79 mm
(3 in, 3 in)- Nominal power
49 kW
(66.6 hp)- Maximum torque
10 Nm, 18 Nm
(7 ft.lb, 13 ft.lb)- Overall lenght
2,599 mm
(102 in)- Overall width
1,300 mm
(51 in)- Overall height
3,044 mm
(120 in)- Weight
5,200 kg
(11,464 lb)
Description
Shortest possible changeovers, ultra-high dynamics and lowest secondary times are the basis of minimal cost per part.
Machine highlights
Your benefits
Grooving slide for maximum cutting performance with minimum machining time
Quick tool setup by INDEX W-serration
Spindle drum with individual drives of the work spindles
Cross-slide for flexible complete machining
CNC cutoff slide with extended stroke for rear end machining
Highly dynamic synchronous spindle with extremely short acceleration and deceleration times
Up to 22 mm bar diameter with version MS16 -6Plus
Already included: the operating system iXpanel i4.0 ready with 18.5” touch screen and Siemens S840D sl
The machine design
With dynamic and diverse machining capabilities at low unit costs
A maximum of 12 tool carriers with 1 or 2 travel axes
Fast synchronous spindle for rear end machining
Several tools per cross-slide possible
Variable use of tool carriers, internal-external, stationary or live
C-axis machining possible in every spindle position
Polygon turning and other machining options
