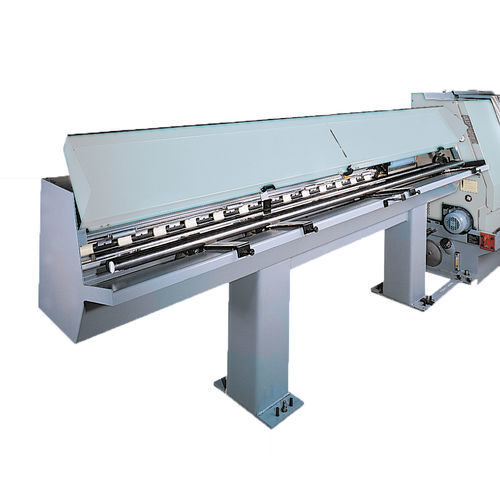

Loading system LMI

Bar loader for ABC Bar makes contact with stop within 1.5 s Reloading in parallel to the cycle Bar reloads within 5 s Quick adjustment of the two guide half-tubes to the bar diameter Hydrodynamic oil cushion in the guide channel Very short design, only about 100 mm longer than the bar Bar is always guided to the spindle center The ABC comes with an interface for bar loading magazines as standard. By attaching a loading magazine INDEX LMI, you gain up to 4 s for bar feeding in connection with the bar feeder Attaching the loading magazine INDEX MBL provides for maximum smoothness and accuracy due to the unique guiding principle The interface also allows attaching common thirdparty makes Technical data Bar stock Chuck diameter mm 42 // 60 Round, dia. mm 8 - 36 // 8 - 52 Hexagon, size mm 7 - 30 // 7 - 41 Square, a/f mm 6 - 20 // 6 - 20
