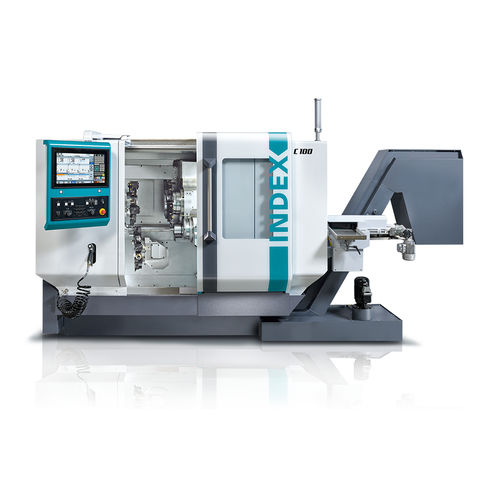

CNC turning machine C100

CNC turning machine
CNC turning machine
CNC turning machine
CNC turning machine
CNC turning machine
CNC turning machine
CNC turning machine
CNC turning machine
CNC turning machine
Add to favorites
Compare this product


Control type
Number of axes
Other characteristics
high-precision, high-productivity, powerful, double-turret, three-turret, spindle, two-spindle, Y-axis

110 mm (4.33 in)

Spindle speed

7,000 rpm (43,982.297 rad.min-1)

Axe X

70 mm (3 in)

Axe Z

125 mm, 250 mm, 400 mm (5 in)

Rapids on X

30,000 mm/min (20 in/s)

Rapids on Z

30,000 mm/min, 60,000 mm/min (20 in/s)

Nominal power

25 kW, 29 kW, 57 kW (34 hp)

Maximum torque

49 Nm, 65 Nm (36 ft.lb)

Overall lenght

5,990 mm (236 in)

Overall width

1,706 mm (67 in)

Overall height

2,138 mm (84 in)


5,700 kg (12,566 lb)


Simultaneous machining using 2 or 3 turrets High acceleration (1g) and high rapid traverses (60 m/min) Workpiece carrier with Y-axis available on main and counter spindles 2 powerful motor spindles of identical design Very good vibration damping due to INDEX SingleSlide Maximum parts variety through 3 turrets and 42 tools Siemens S840D sl (18.5” touch screen) or Fanuc 31i-B control (15” touch screen) offers economic and productive solutions at any time Already included: the operating system iXpanel - i4.0 ready Working space INDEX C100 View into the work area The INDEX C100 opens up new opportunities for high-speed production of parts turned from bar stock. Despite its compact external dimensions, the INDEX C100 has a large-sized working area for complete machining of workpieces. The kinematics The vertical design of the machine bed guarantees optimum chip removal and ready access. 2 x Y axes on the main-spindle or 1 x each on the main and counter spindles possible. This allows an optimum division even of complex operations and a reduction of cycle times. CNC-Controls Optionally Siemens 840D sl or Fanuc 31i-B. iXpanel: The operating system for direct communication of the production turning machine INDEX C100 with your business organization. iXpanel consists of an 18.5” multi-touch screen (Fanuc 15''), the latest control based on Siemens S840D sl and Industry 4.0 functionalities. Optionally, the Virtual Machine can also be integrated, for example for 3D simulations and production-parallel setup of the next workpiece.


C100, C200
C100, C200
20 Pages
23 Pages
