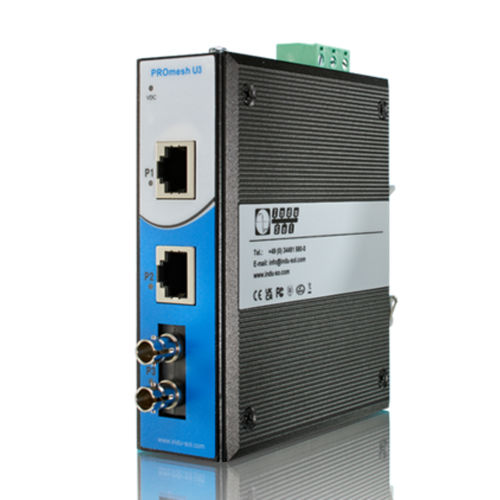

Unmanaged ethernet switch PROmesh U3

3 portProfiNetDIN rail

The PROmesh U3 is an unmanaged industrial switch optimized for PROFINET Conformance Class A. With one fiber optic multimode port and two RJ45 ports, it can also function as a media converter. Product Highlights: Compact design and metal housing for easy integration in various environments Robust construction for operation in temperatures ranging from -40°C to +75°C PROFINET prioritization and Conformance Class A compliance 1 Gbit/s backplane capacity and 0.74 Mpps throughput for high network performance CE and UKCA certifications for international compliance The PROmesh U3, equipped with a fiber optic MM port, is ideal for industrial automation systems, ensuring fast data transmission and high data integrity. With a backplane capacity of 1 Gbit/s and a throughput rate of 0.74 Mpps, it offers efficient data handling and reduced latency for time-critical applications. The CE and UKCA certifications guarantee that the switch meets international standards for quality and safety. Its robust design, along with an operating temperature range from -40°C to +75°C, ensures reliable performance in industrial environments. The PROmesh U3 is a solid and environmentally conscious choice for demanding industrial applications. Features: Media converter for light to copper/copper to light 1 fiber optic port and 2 RJ45 ports with 100 Mbit/s speeds Additional features via DIP switches, including One-Key VLAN
